Showbird 65 10x10 Backlit Lightbox Booth | Configuration A with Bridge

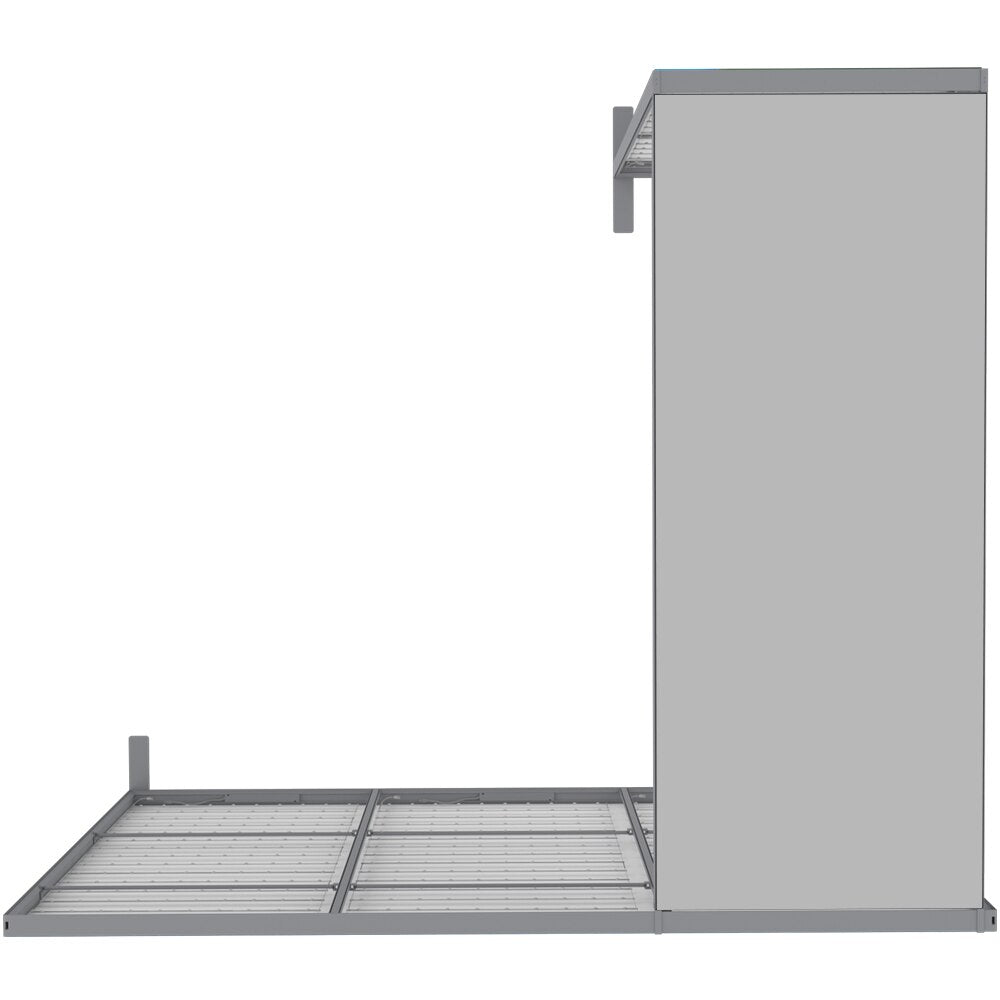

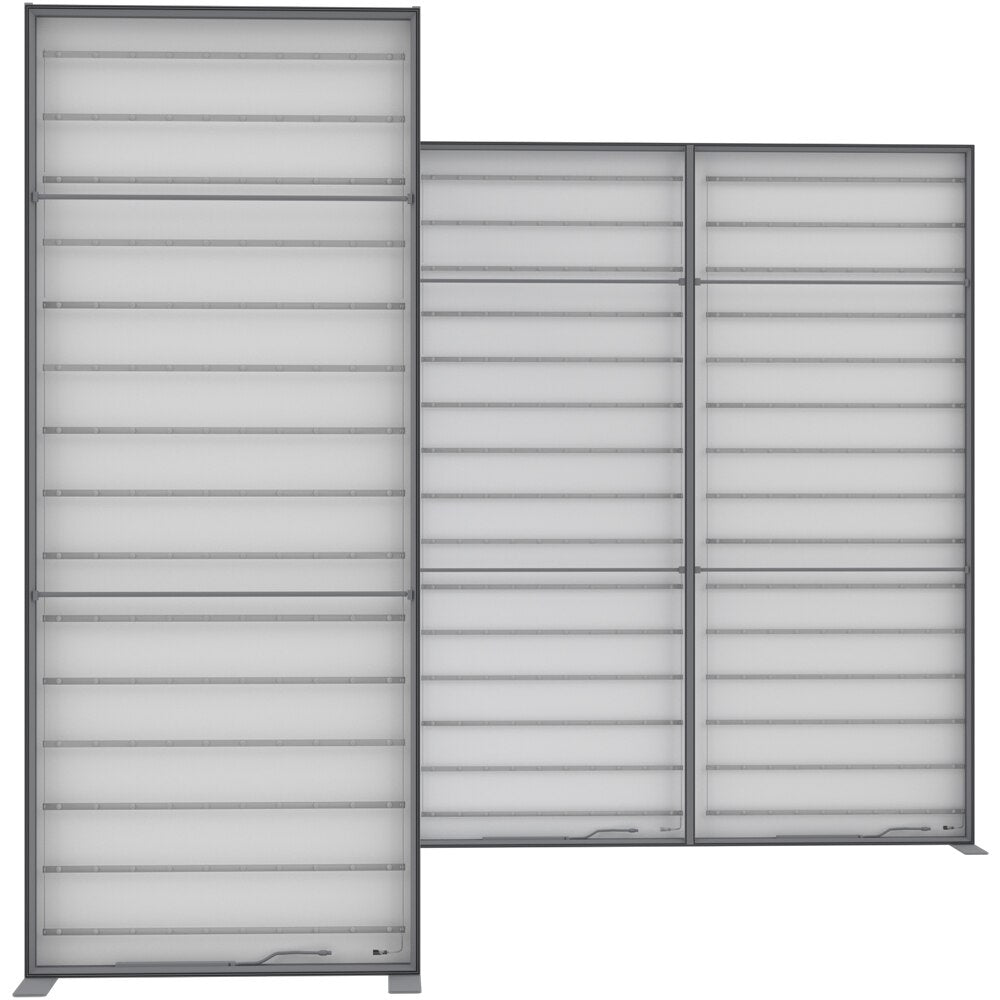

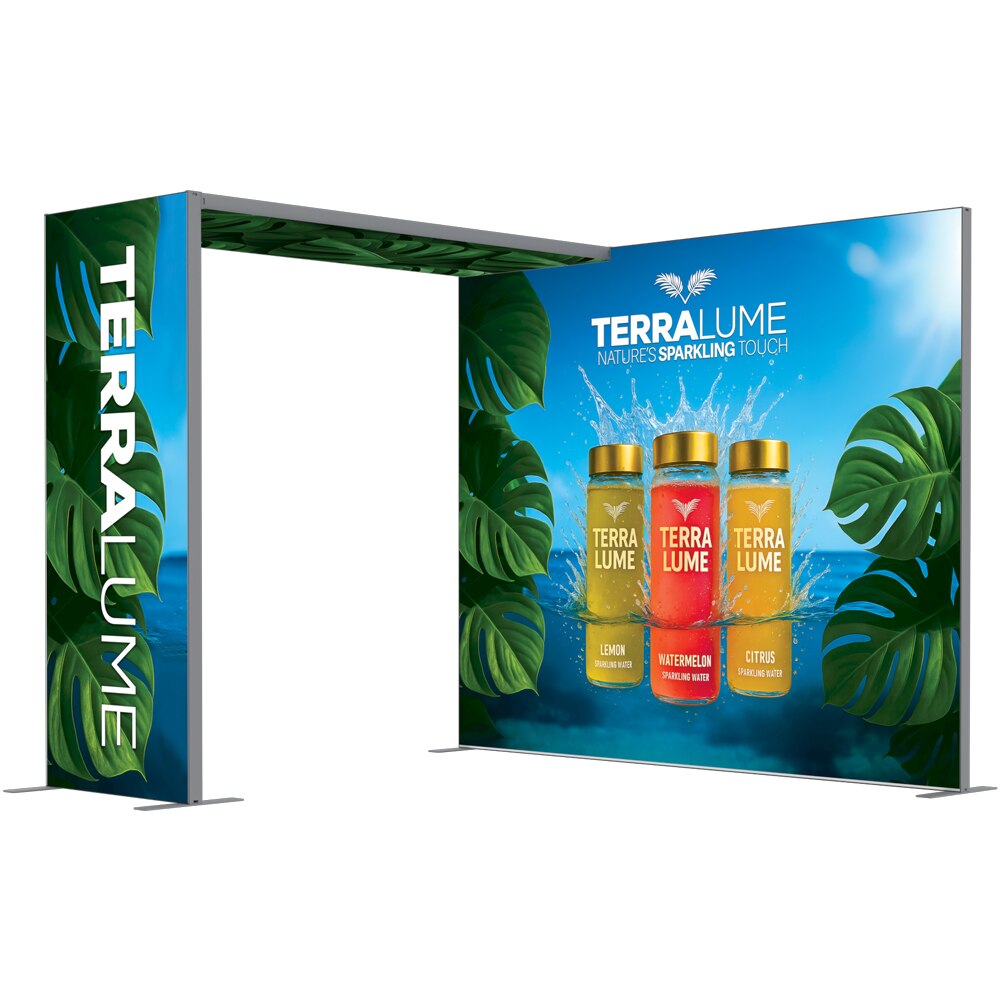

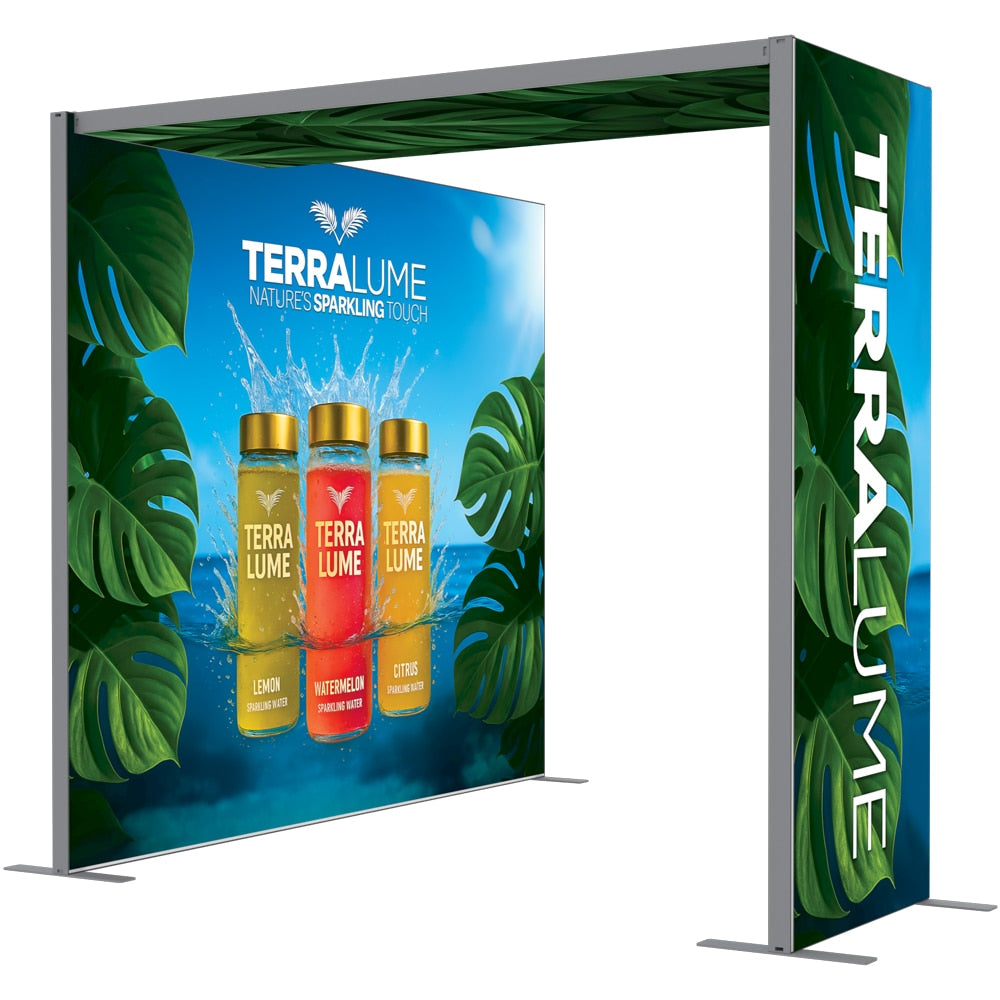

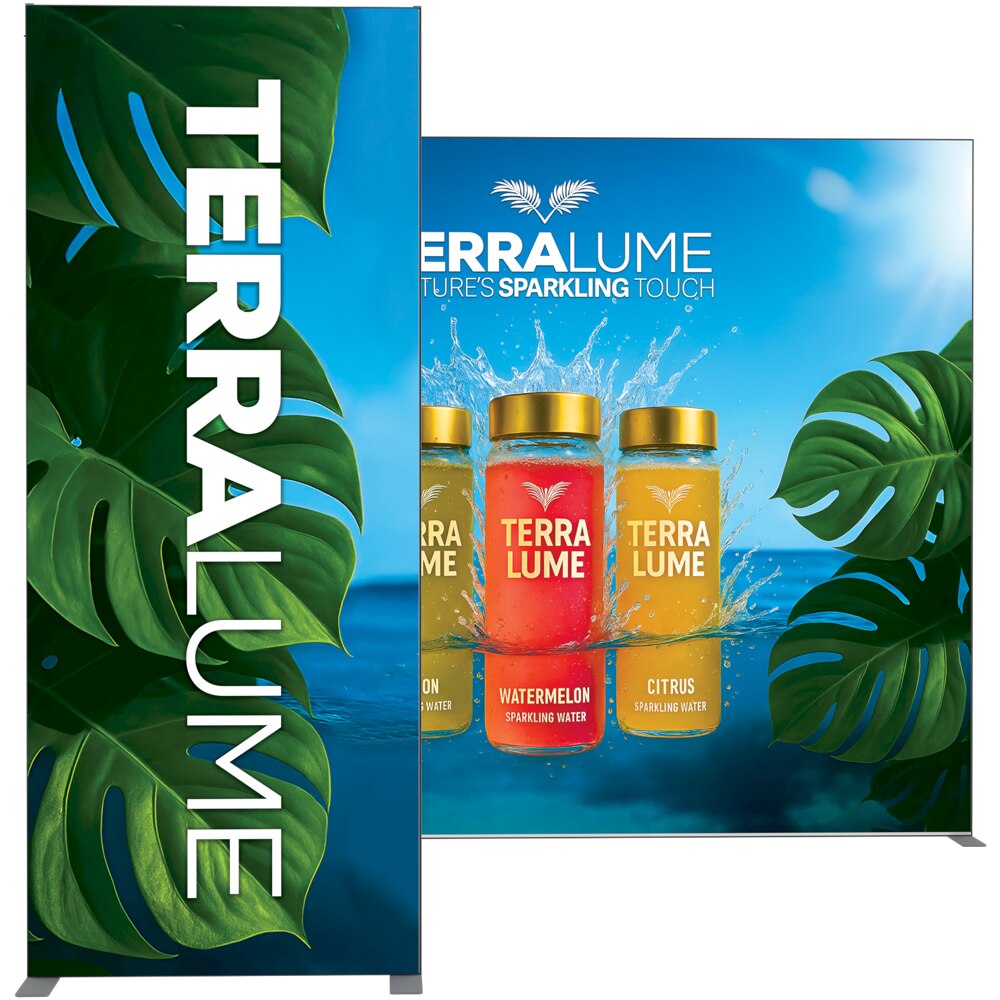

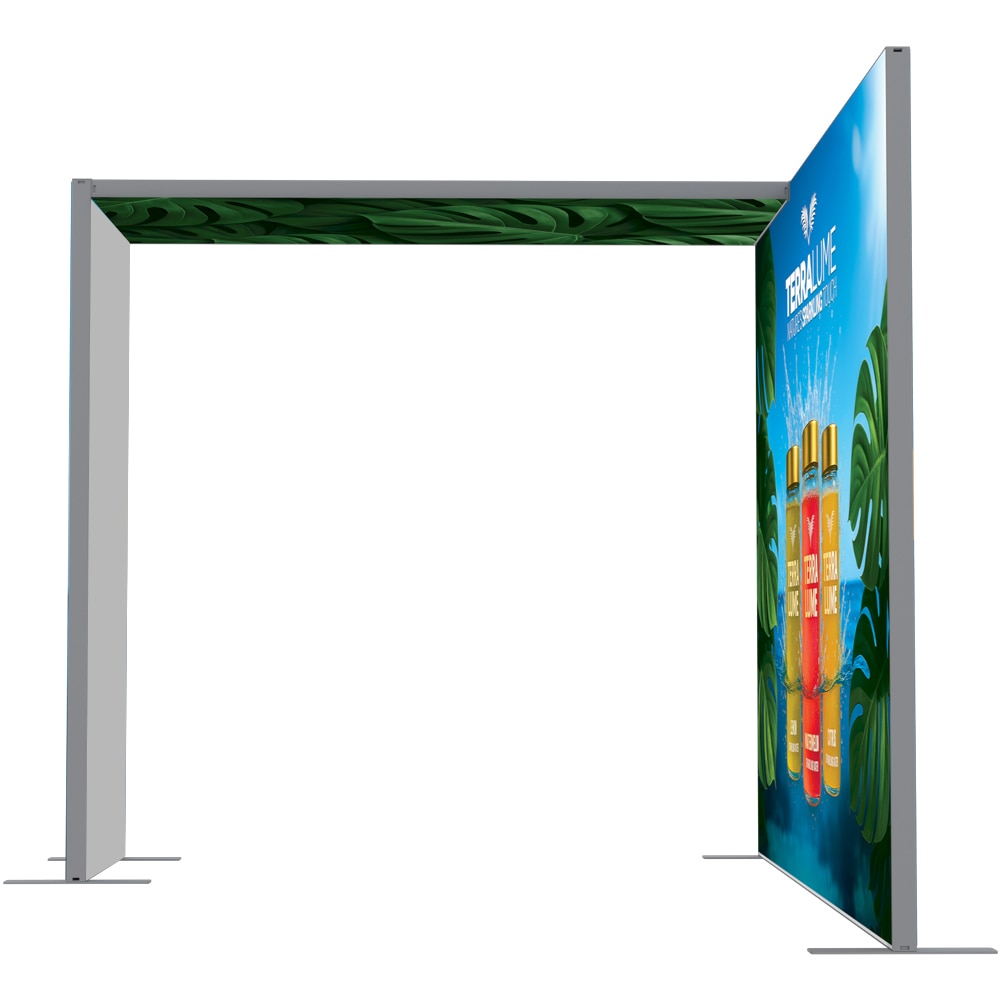

Showbird 65 Configuration A is a 10 x 10 booth made of backlit lightbox frames: a 10 ft. back wall and two side towers joined by an overhead bridge. Internal LED ladder lights sit behind every front graphic, so the booth glows evenly from across the hall. Assembled it is 118.11 in. wide, 96 in. high and 99.5 in. deep.

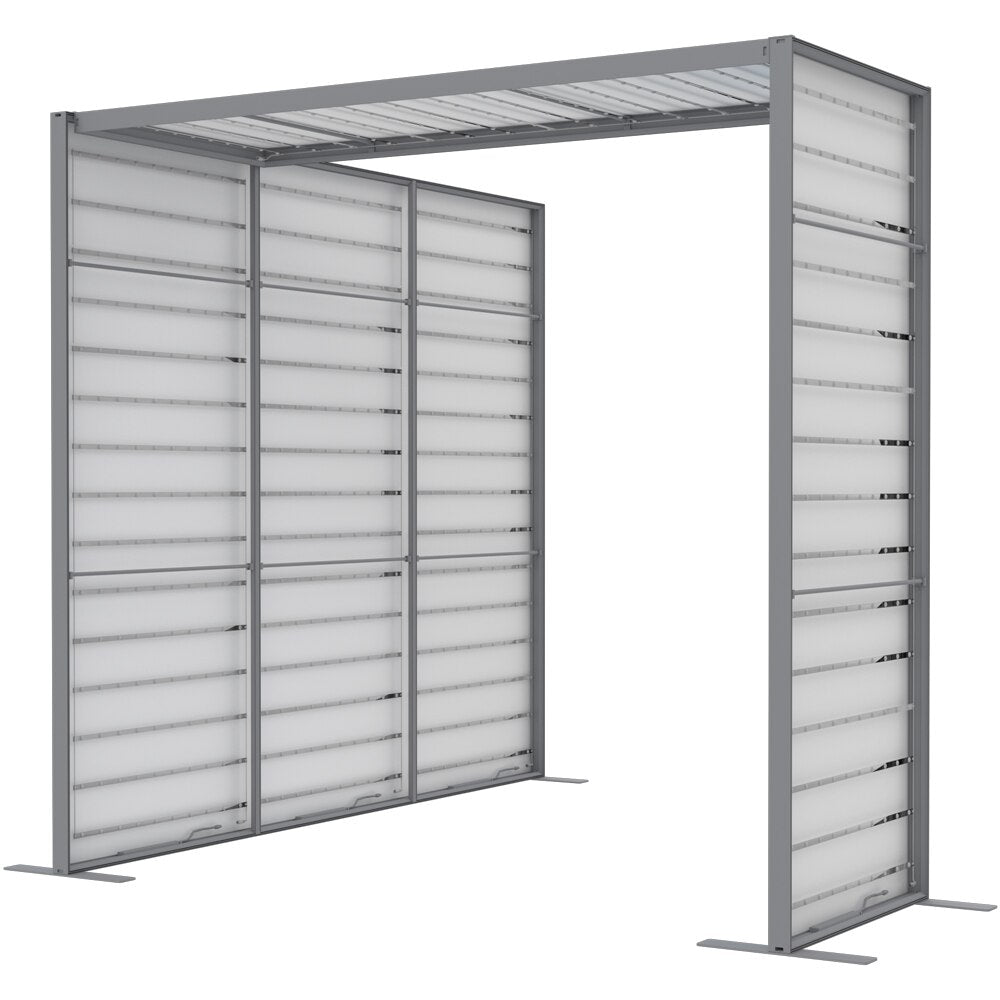

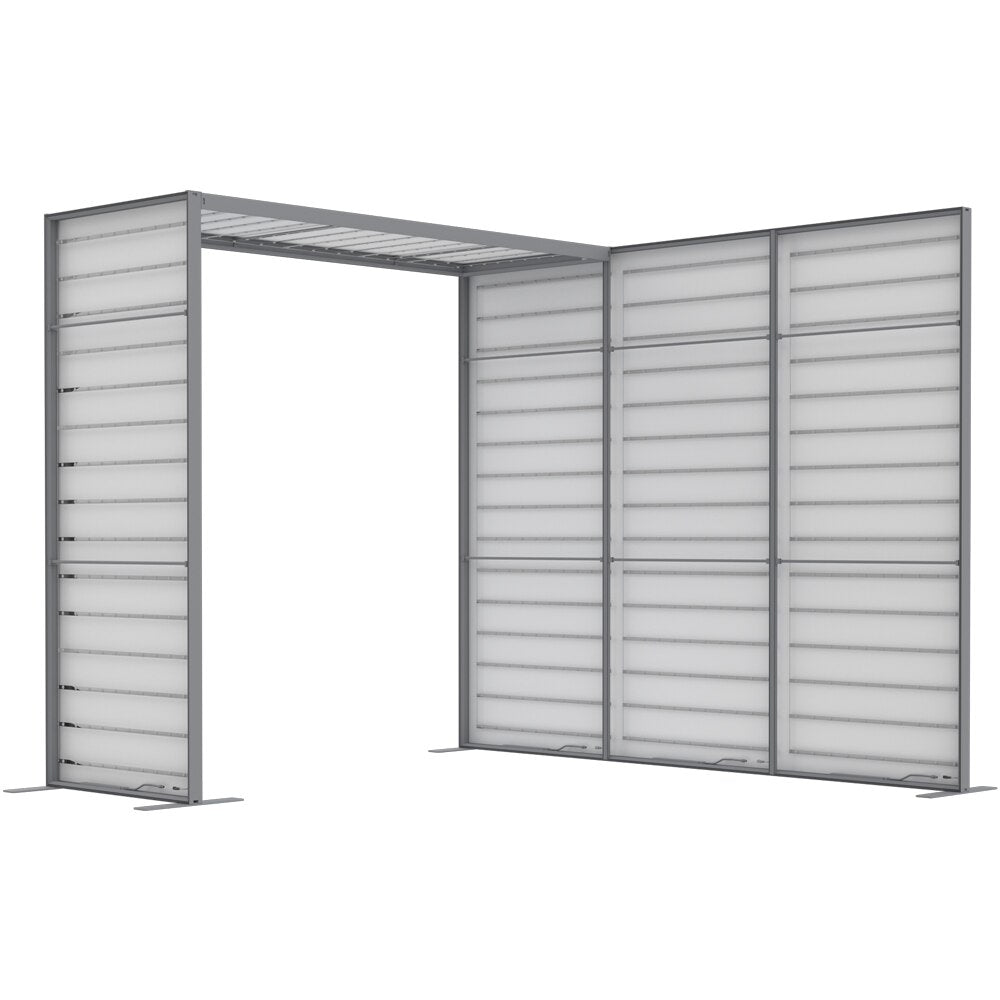

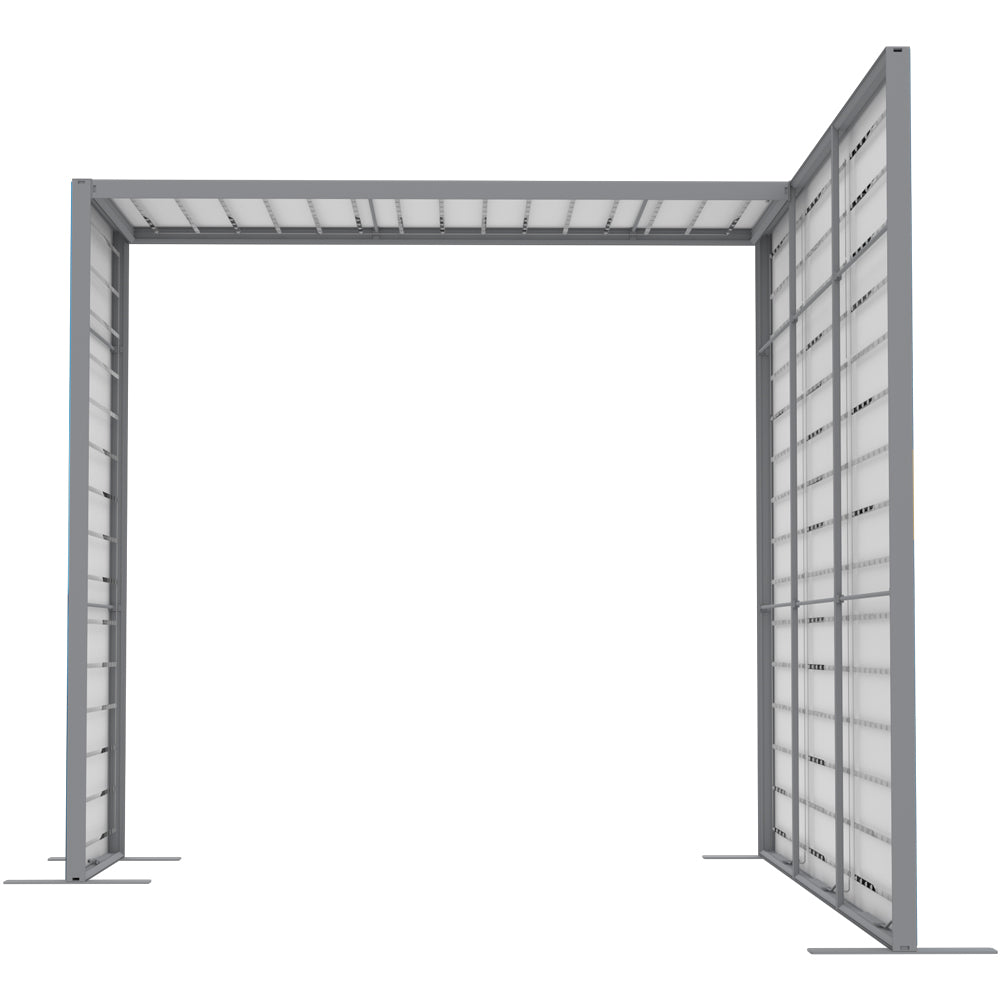

The frames are 65 mm wide silver anodized aluminum. Graphics are dye-sublimated fabric with a silicone edge (SEG) that presses into the frame channel, so the print sits flat with no visible border. The frames are what you keep; the graphics are what you change.

What's included

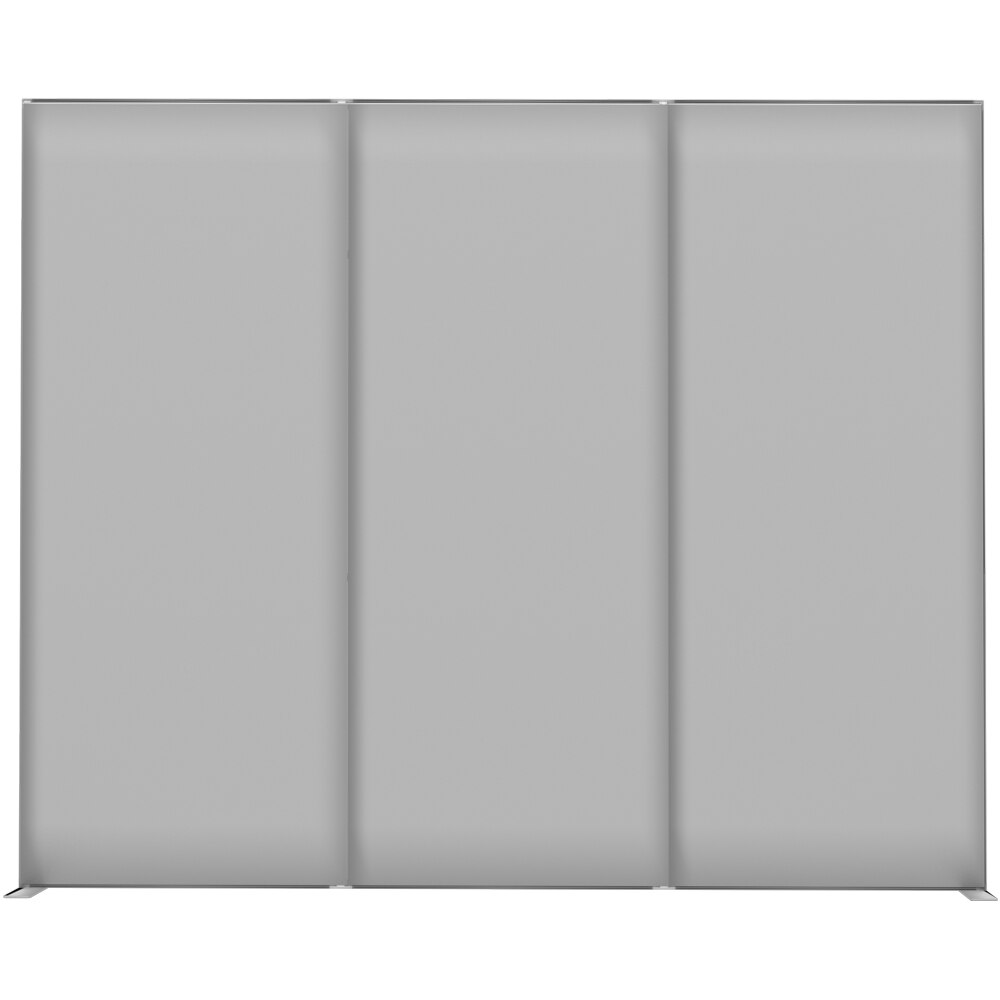

• (1) 10 ft. x 8 ft. lightbox frame (SB65-300x240)
• (2) 3.3 ft. x 8 ft. lightbox frames (SB65-100x240)
• (4) bridge components (SB65-BC-A and SB65-BC-B)
• (3) backlit SEG front graphics
• LED ladder light panels and power cords
• Oxford travel bags with foam inserts for each frame

Want the back printed too? Each frame has a second SEG channel on the back for an optional non-backlit graphic. Ask for a quote and we will add them.

Specifications

• Assembled size: 118.11 in. W x 96 in. H x 99.5 in. D
• Frame: 65 mm silver anodized aluminum, tool-free assembly
• Lighting: internal LED ladder lights, 3 power outlets required
• Graphics: dye-sublimated backlit fabric, SEG finish
• Options: shelving and monitor mounts available as add-ons

Check your booth type and power before you order

At 99.5 in. deep and 8 ft. tall, this layout uses the full depth of a 10 x 10. Many shows limit side-wall height in the front half of an inline booth, so check the line-of-sight rules in your exhibitor kit. The booth needs three outlets, so order electrical service from the show. If the layout needs to change to meet a show's rules, we can quote a custom Showbird configuration.

How it compares to the Showbird 120

The Showbird 120 10x10 Configuration A has the same footprint with wider 120 mm frames lit by LED strips along the edges. The Showbird 65 uses a slimmer frame lit from behind by ladder lights, and costs less.

Shipping

Each frame packs into its own padded travel bag. Shipping is quoted for your address before production starts.

Questions

Can I reprint the graphics later? Yes. Each SEG panel can be reprinted on its own for a launch, a rebrand or a new show.

Can it be expanded? Yes. Showbird 65 frames are modular and can be used individually or combined into larger layouts.

What artwork do you need? Print-ready files at the panel sizes on our template. Send your logo and brand assets if you do not have artwork at size and we will build it.

If you would rather not build it

DG Creativ is in Stow, Ohio, and installation is half of this company's work. For shows in Cleveland, Akron and Columbus we can quote receiving the booth, setting it up on the floor and breaking it down. Call 330.968.0678, email sales@dgcreativ.com, or request a quote.
