Showbird 120 10x10 Backlit Lightbox Booth | Configuration A with Archway

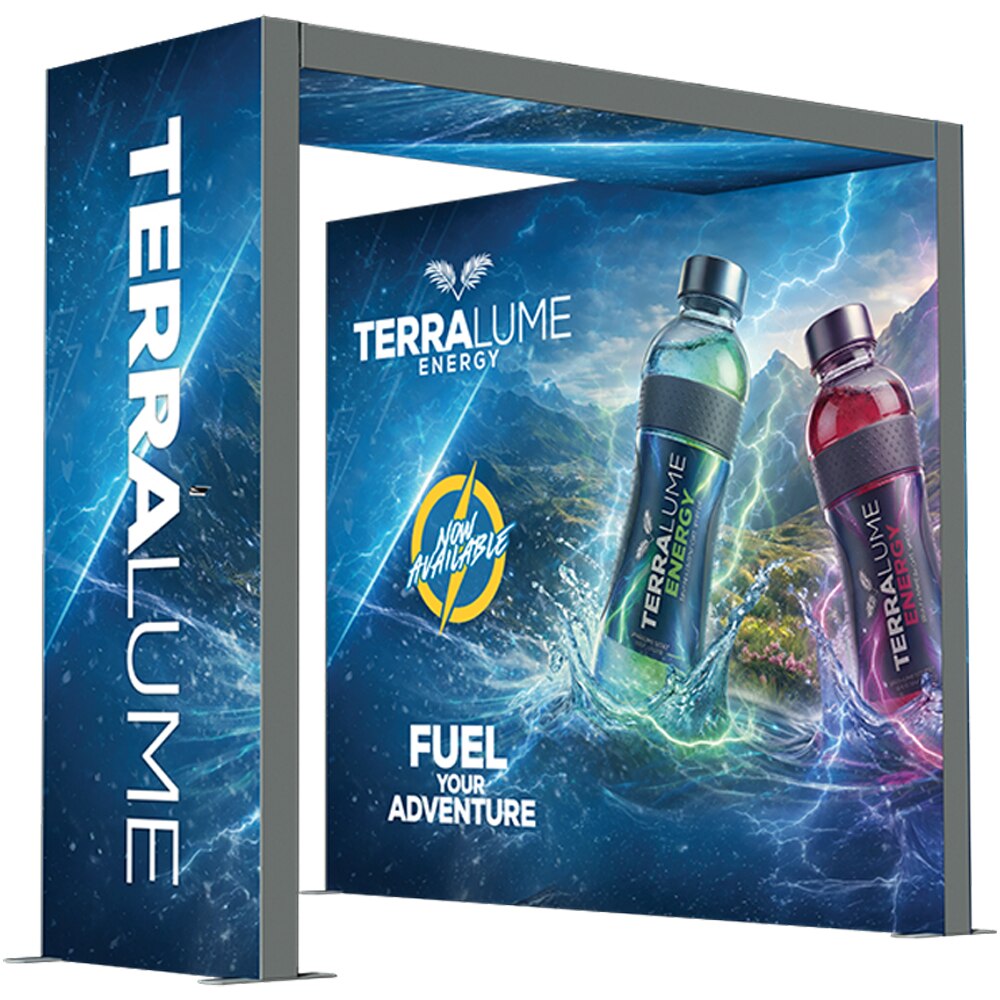

Showbird 120 Configuration A is a 10 x 10 booth built entirely from lit lightbox frames. A 10 ft. back wall, two side towers and an archway glow from LED strips built into the top and bottom of every frame, so the whole booth reads from across the hall instead of only the back wall. Assembled it is 119.11 in. wide, 96 in. high and 99.5 in. deep.

The frames are 120 mm wide anodized silver aluminum, deep enough to throw light evenly across the fabric with no hot spots. Graphics are dye-sublimated backlit fabric with a silicone edge (SEG) that presses into the frame channel, so the print sits flat and borderless. The frames are what you keep; the graphics are what you change.

Single-sided or double-sided

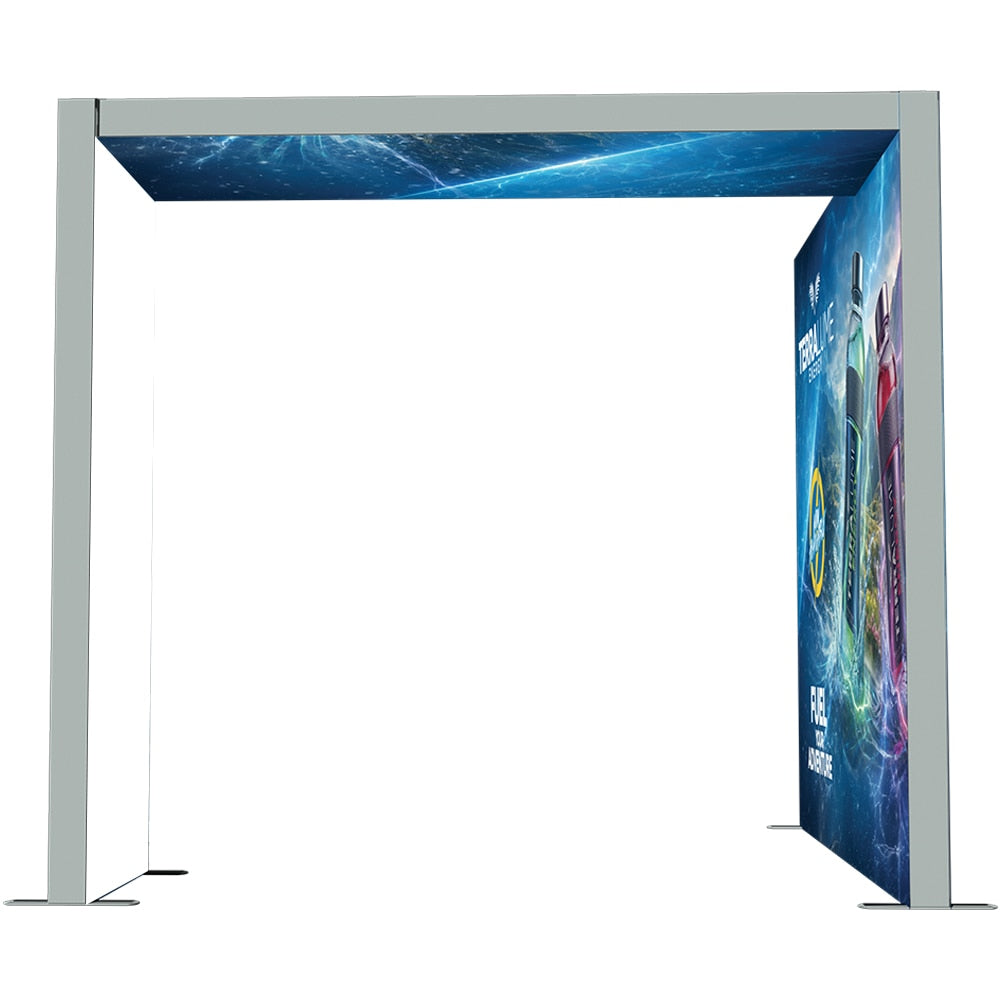

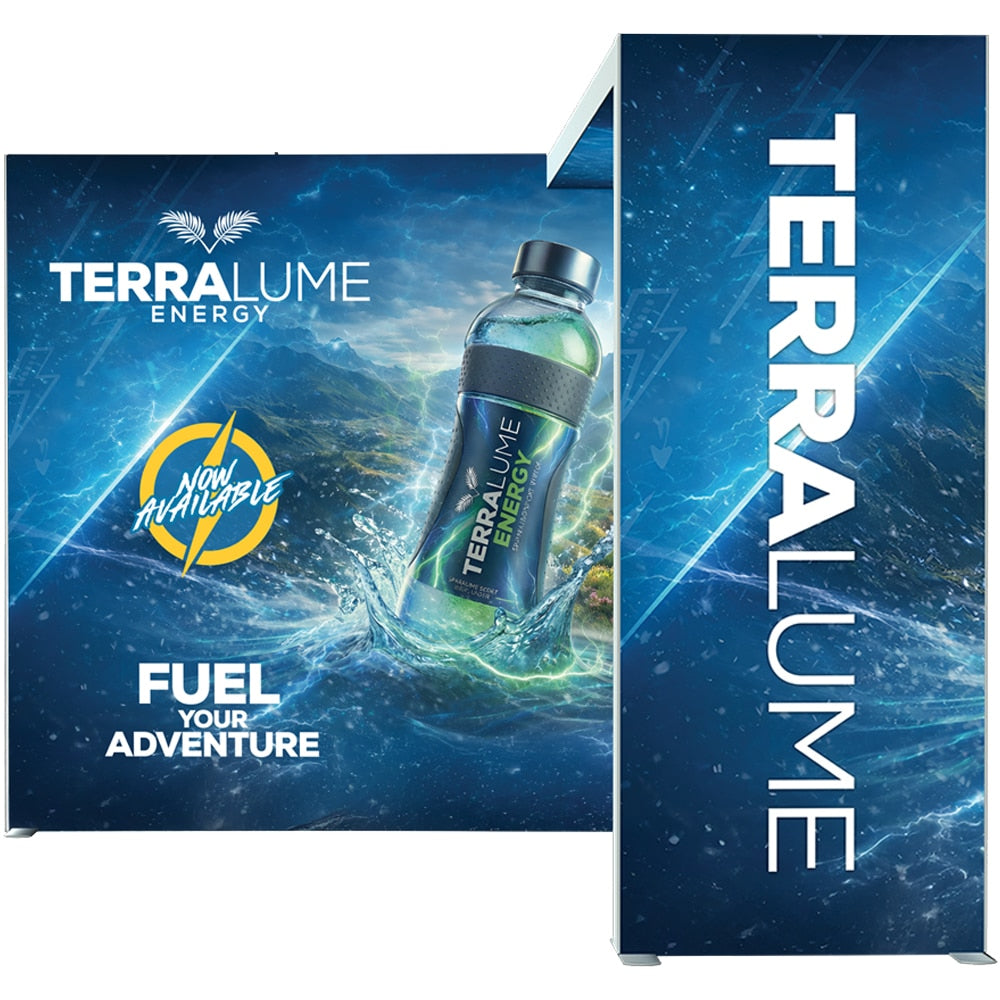

• Single-sided: three printed graphics facing the aisle, with blockout panels on the back so light does not leak through and the rear looks finished.

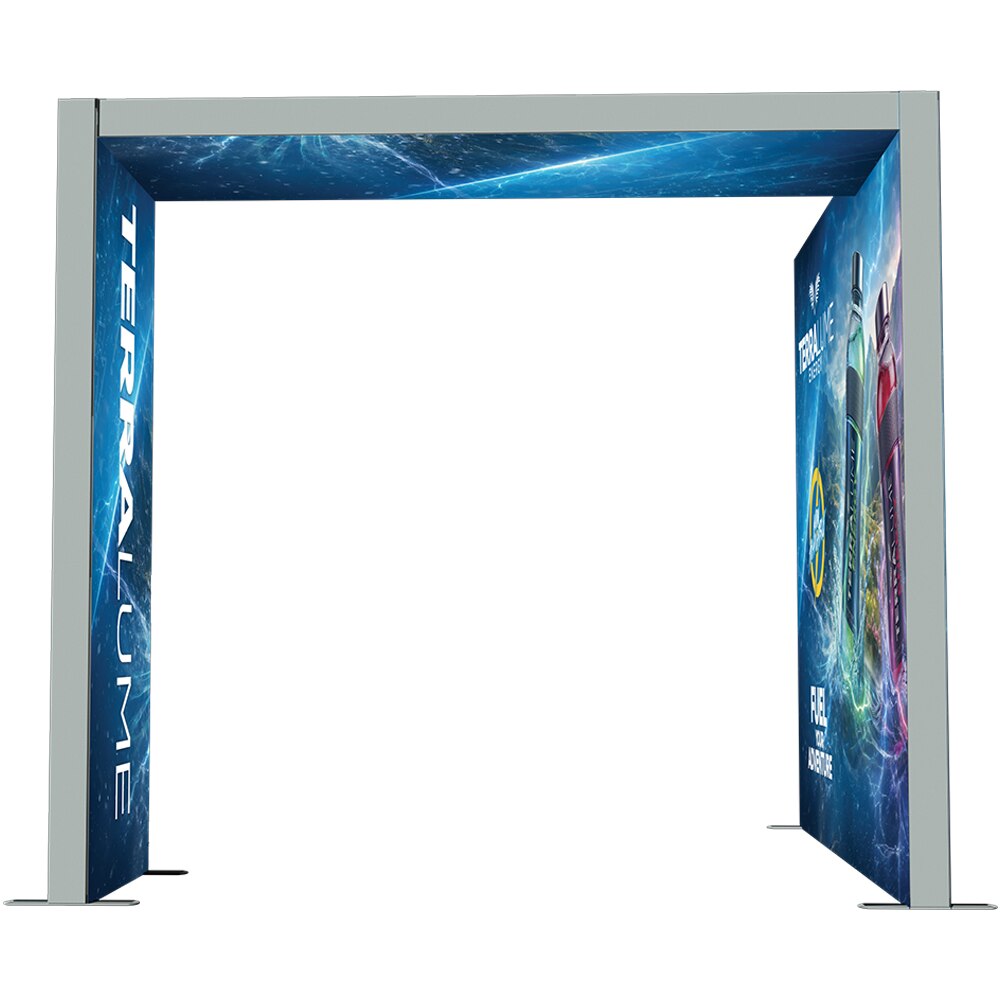

• Double-sided: six printed graphics, front and back, for a booth that is seen from more than one side or for brand messaging inside the archway.

What's included

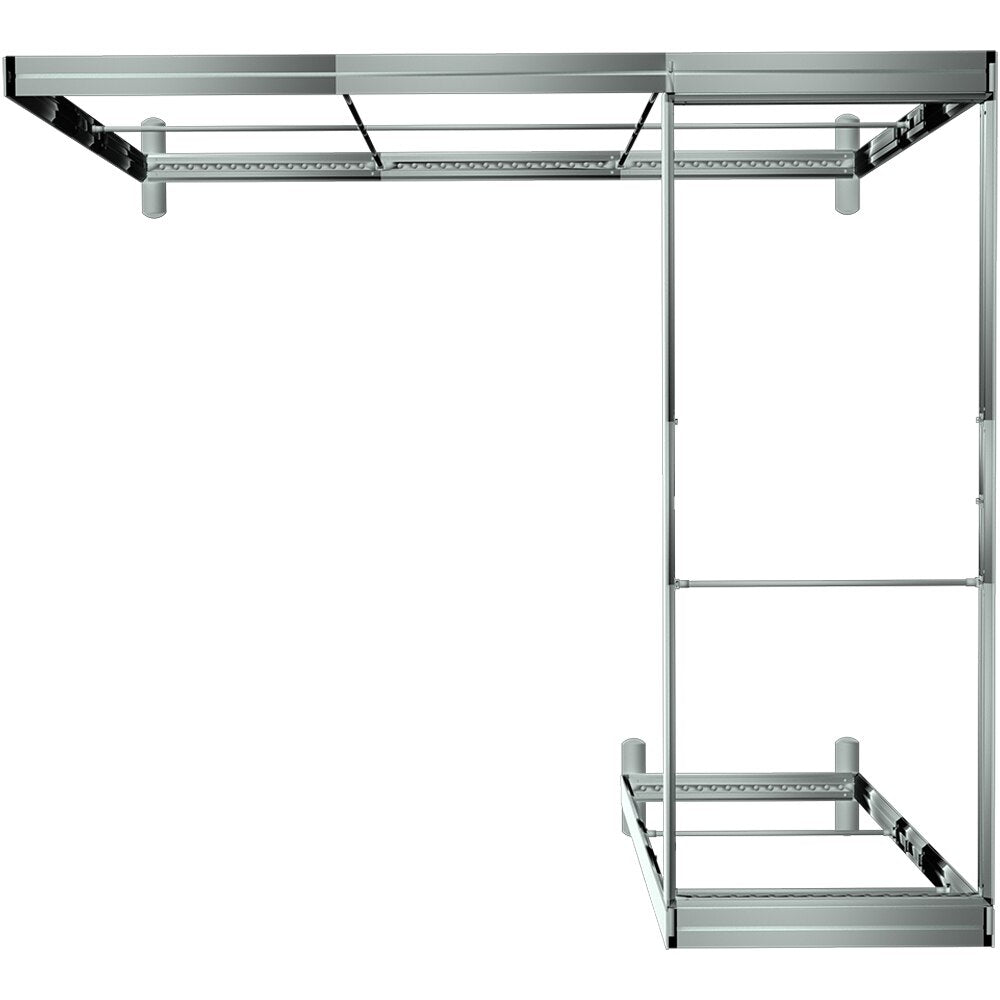

• (1) 10 ft. x 8 ft. lightbox frame (SB120-300x240)
• (2) 3.3 ft. x 8 ft. lightbox frames (SB120-100x240)
• (2) front arch pieces and (2) back arch pieces
• Single-sided: 3 SEG graphics and 3 blockout panels. Double-sided: 6 SEG graphics
• (3) hardware travel bags

Specifications

• Assembled size: 119.11 in. W x 96 in. H x 99.5 in. D

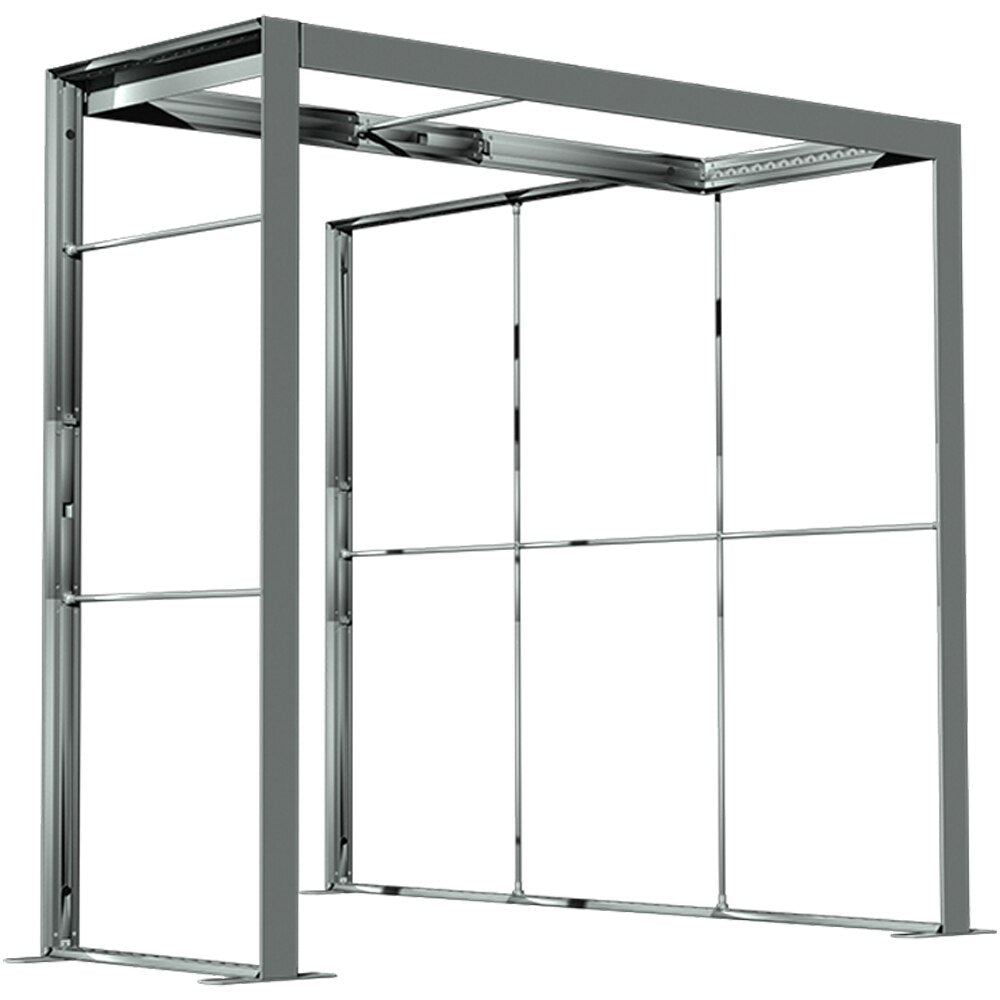

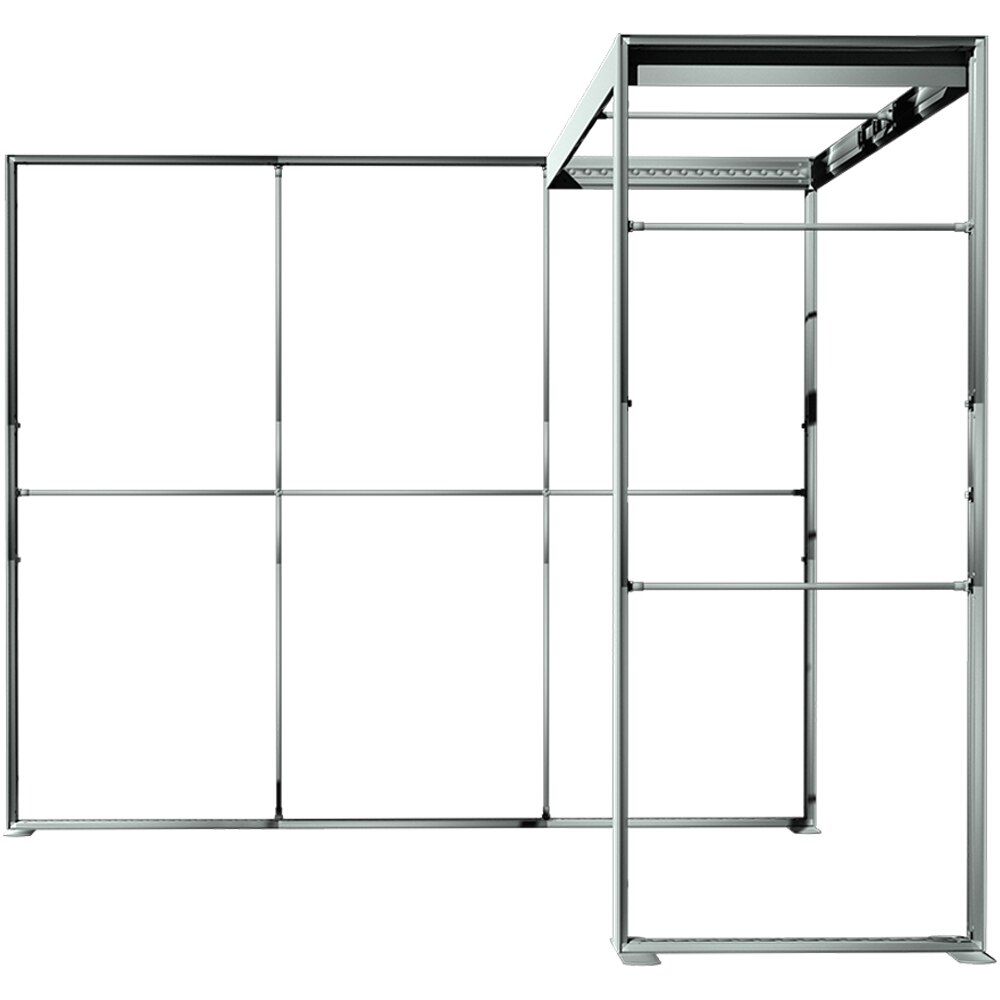

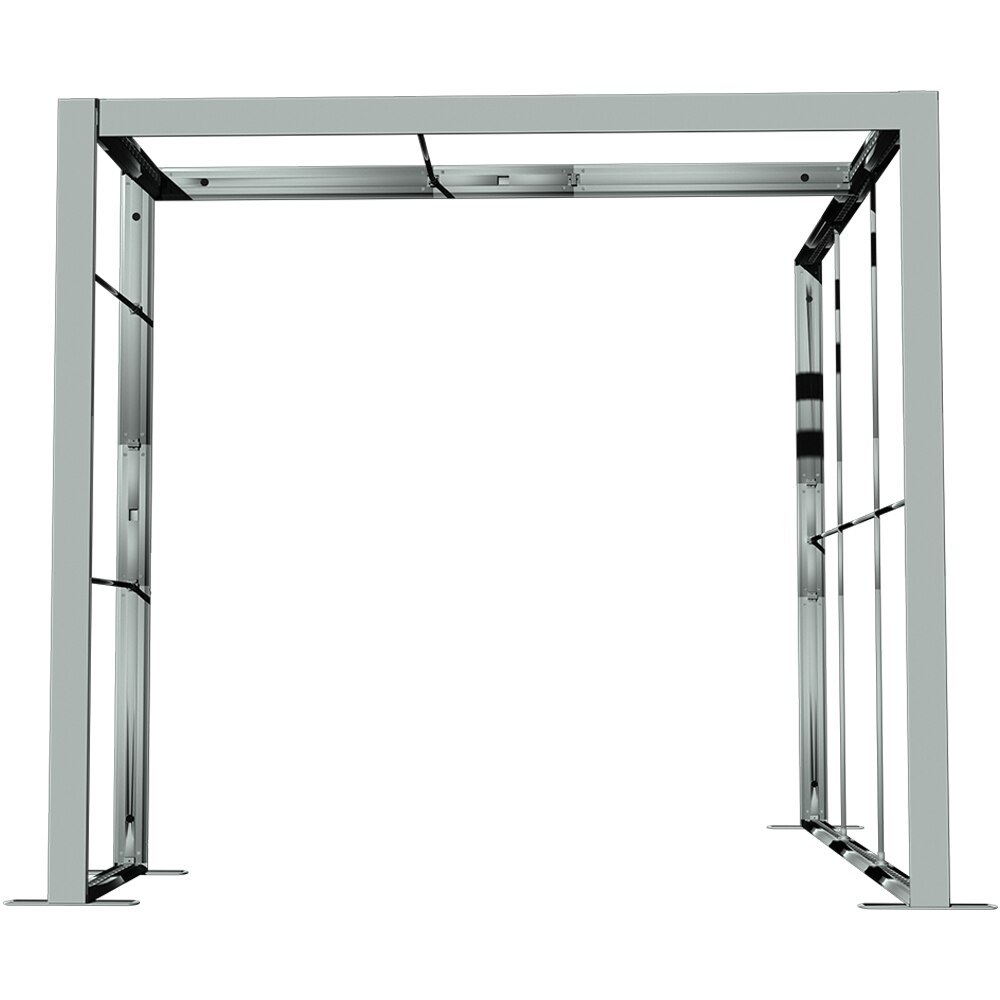

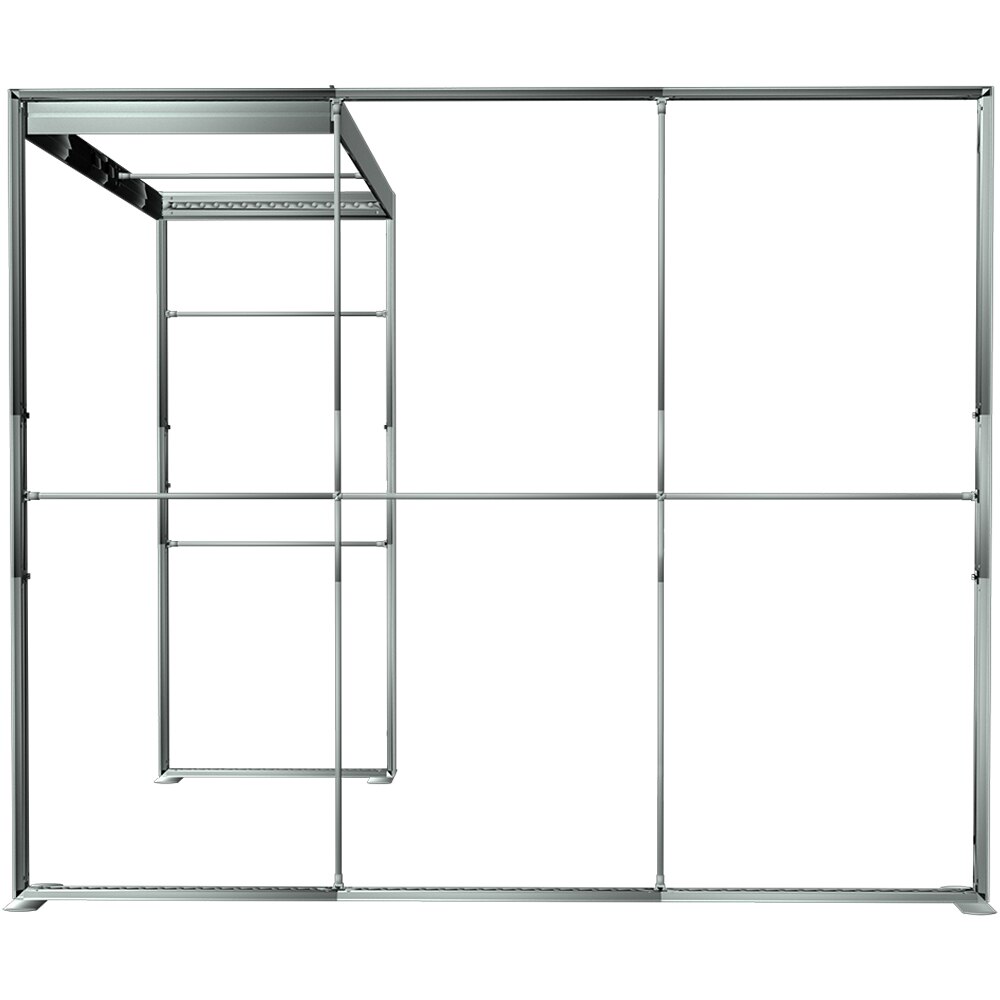

• Frame: 120 mm anodized silver aluminum extrusion, tool-free assembly
• Lighting: LED edge lighting in the top and bottom profiles of each frame
• Graphics: dye-sublimated backlit fabric, SEG finish
• Options: monitor mounts and shelving are available as add-ons

Check your booth type and power before you order

At 99.5 in. deep and 8 ft. tall, this layout uses the full depth of a 10 x 10. Many shows limit side-wall height in the front half of an inline booth, so check the line-of-sight rules in your exhibitor kit. It is a lit display, so you will also need to order electrical service from the show. If the layout needs to change to meet a show's rules, we can quote a custom Showbird configuration.

Setup

Frames assemble without tools, the arch pieces connect the walls, and the graphics press in last. Union halls can require the hall's labor for a structure this size; the rule is in the exhibitor kit.

Shipping

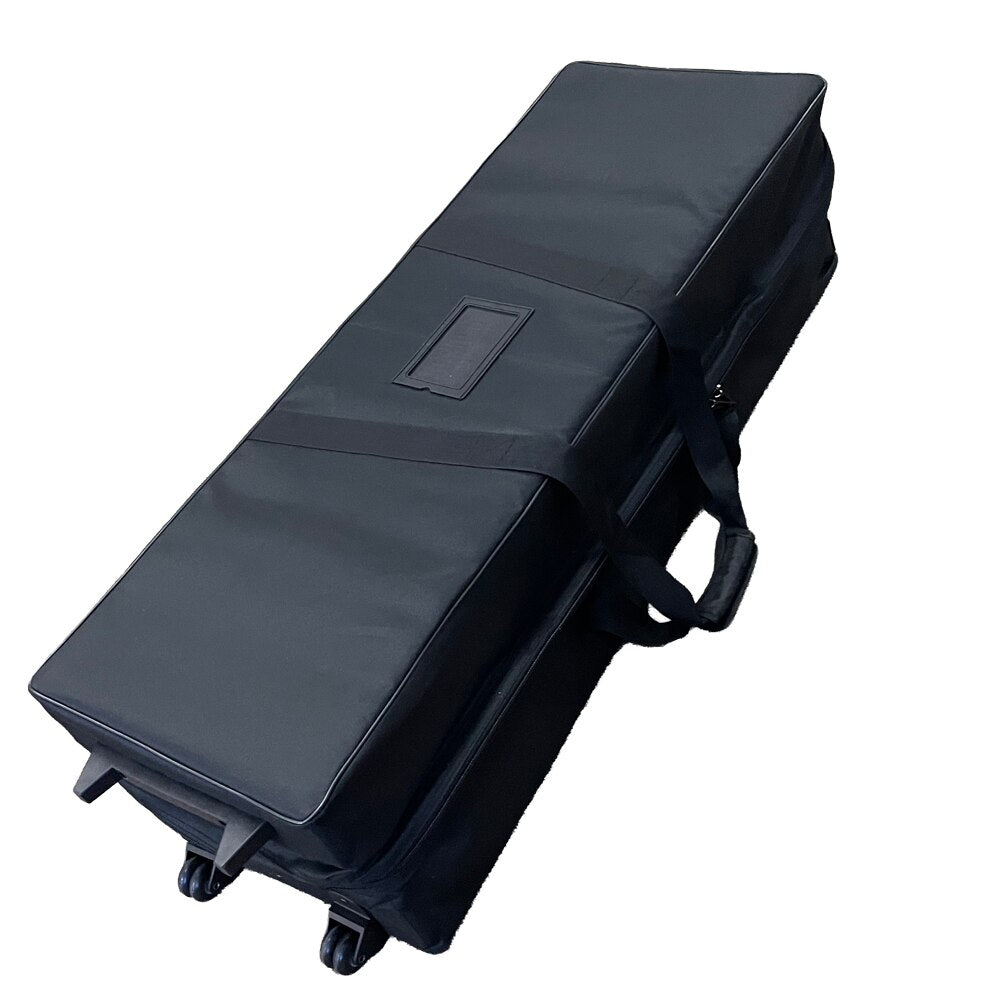

The hardware packs into three travel bags. Shipping is quoted for your address before production starts.

Questions

Can I reprint the graphics later? Yes. The frames are reusable and each SEG panel can be reprinted on its own for a launch, a rebrand or a new show.

Can it be expanded? Yes. Showbird 120 frames are modular, so this booth can grow into a 10 x 20 with more frames, and the individual frames can be used on their own.

Is there a matching counter? Yes, the Showbird 120 backlit counter uses the same frame and lighting.

What artwork do you need? Print-ready files at the panel sizes on our template. Send your logo and brand assets if you do not have artwork at size and we will build it.

If you would rather not build it

DG Creativ is in Stow, Ohio, and installation is half of this company's work. For shows in Cleveland, Akron and Columbus we can quote receiving the booth, setting it up on the floor and breaking it down. Call 330.968.0678, email sales@dgcreativ.com, or request a quote.
