20' x 7.4' SEGO Modular Lightbox Display Configuration A Double-Sided

A 20 ft. lit back wall from two panels and two connectors — the simplest thing SEGO does at this width, and the one that goes up fastest. Assembled it measures 236 in. wide by 88.25 in. high and only 16.5 in. deep, so it fills the back of a 10x20 inline booth without eating into the floor you sell from.

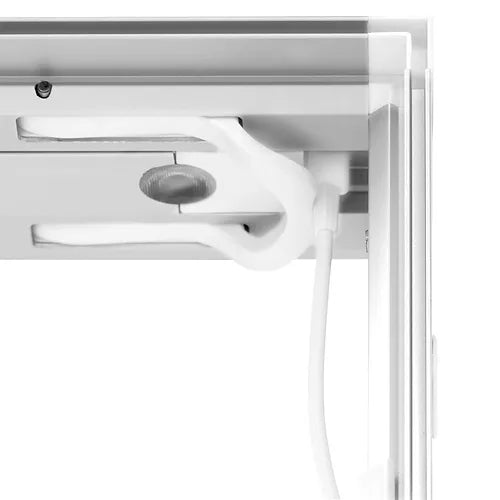

Both faces carry backlit graphics. The LEDs are pre-installed inside the aluminum extrusions and magnetic electrical connectors pass power across the joint between the two panels, so a wall this wide runs off one power drop with no cabling visible behind it.

Key Features

• Twenty feet, two panels: Two 10 ft. frame sections and two straight connectors. Fewer parts than any other way of lighting a wall this wide, and fewer parts is what makes a 20 ft. wall manageable.

• LEDs built into the frame: UL-certified LED strips come pre-installed in the profiles. Magnetic connectors carry power between sections, so the wiring stays inside the aluminum.

• Only 16.5 in. deep: The wall is shallow enough to sit tight against the back of the booth, leaving the full 10 ft. of depth for counters, product and people.

• Double-sided: Backlit graphics on the front and the back, so the wall also works as a divider in an island footprint rather than only as a backdrop.

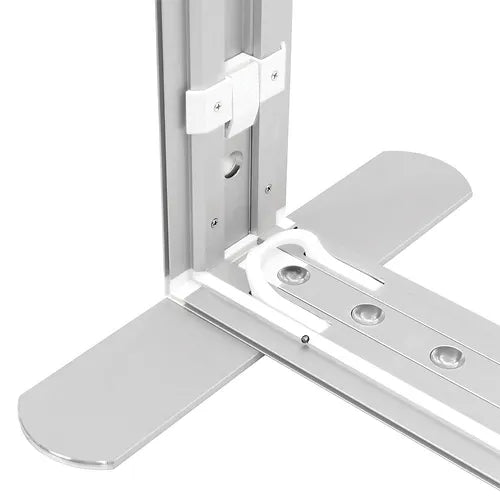

• Tool-free, down to the feet: Sections, connectors and feet assemble without tools or fasteners.

• Splits into two 10 ft. walls: The panels are modular. Run them as one 20 ft. wall for the big show and as two separate 10 ft. lit walls for smaller ones.

Specifications

• Assembled size: 236 in. W x 88.25 in. H x 16.5 in. D
• Graphic size: 118.625 in. W x 88.625 in. H per panel face
• Panels: two 10 ft. sections joined by two straight connectors
• Sides printed: double-sided
• Frame: aluminum extrusion, tool-free, LED strips pre-installed
• Electrical: magnetic connectors between sections, standard outlet
• Graphic material: dye-sublimated backlit SEG fabric with silicone edge
• Ship cartons: four, each 54.5 in. x 15.5 in. x 6.75 in.
• Ship weight: about 60 lbs per carton, frame and graphic together — roughly 240 lbs in total
• Setup: two people, tool-free; sections lock together and the feet slip on

What's Included

• (2) 10 ft. wide backlit frame sections with LEDs pre-installed
• Double-sided dye-sublimated backlit SEG fabric graphics for both sections
• (2) straight connectors
• Feet, transformer, power cabling and foam-cut travel bags

Shipping

Shipping on this display is quoted at checkout. It goes out as four cartons of 54.5 x 15.5 x 6.75 in. at about 60 lbs each, roughly 240 lbs in total.

Where a 20 ft. lit wall fits

This is the back wall for a 10x20 inline booth, and at 16.5 in. deep it also works as a spine down the middle of a 20x20 island with a counter on each side. Twenty feet of lit graphic reads from the far end of a hall in a way that an unlit fabric wall does not.

The same panels hold up as permanent installations too — lobby and atrium walls, showroom backdrops, arena and stadium concourses, and university and hospital entrances, where the frame stays on the wall and the graphic changes with the season.

Ordering from Stow, Ohio

A 20 ft. graphic is where artwork problems become visible. Backlighting flattens contrast, and a logo file that looked fine at 4 in. can be soft at 10 ft. wide. We lay out the graphics, proof them at size, and say plainly when a file needs rebuilding before it goes to print.

For customers across Northeast Ohio — Akron, Cleveland, Canton, Kent, Hudson, Youngstown — we deliver the wall, set it up at the venue, handle the show paperwork and store it between shows, then reprint graphics for the next one. A 20 ft. booth is usually the point at which storage and setup matter more than the hardware price.

Show rules vary. Check your show's guidelines before ordering, and if the configuration needs adjusting to meet them, email sales@dgcreativ.com and we will quote the change.

Frequently Asked Questions

Can I run it as two 10 ft. walls?
Yes. The two panels are independent modular sections with their own LEDs. Leave the connectors out and you have two lit 10 ft. walls, which is how most customers use it in the years they take a smaller booth.

How much power does a 20 ft. lit wall need?
One standard outlet. The LED strips are low-voltage and run from a transformer; you are not ordering a special electrical service, only the usual booth power drop.

How many people to set it up, and how long?
Two people, no tools. Sections lock together and the feet slip on. Whether you may set it up yourself depends on the venue's labor rules rather than on the display — check the exhibitor kit for the hall.

Does it ship as freight or as boxes?
Four boxes at about 60 lbs each, roughly 240 lbs all together. Shipping is quoted at checkout because the cost depends on where it is going and whether it needs a liftgate or inside delivery.

Can I reprint just the graphics?
Yes. The frames and lighting are the long-term investment. Send new artwork and we print replacement SEG graphics to the same 118.625 x 88.625 in. panel size.

Will it clear an 8 ft. height limit?
It stands 88.25 in., a little over 7 ft. 4 in., so it clears the usual 8 ft. inline back wall limit. Confirm against your own show's rules.
