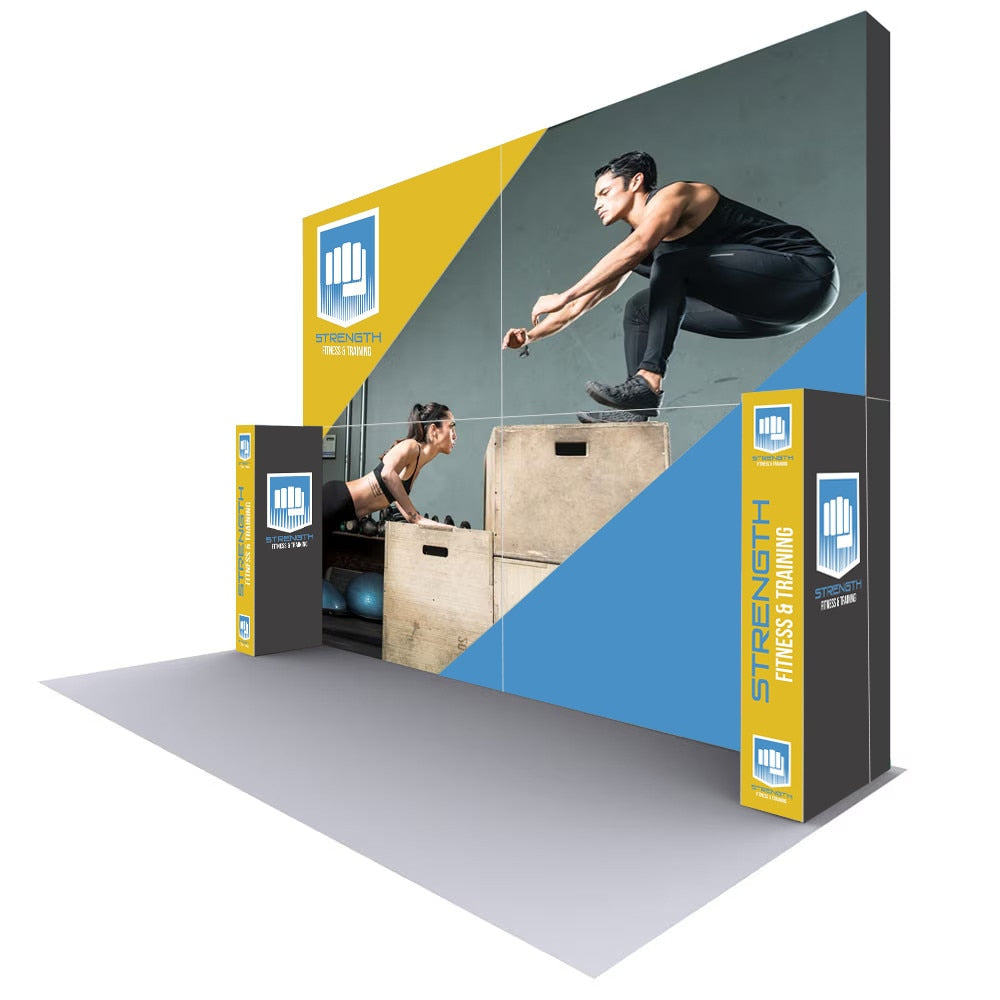

20 x 15 ft. Lumiere Light Wall® Configuration F Dual Edge Light (Two-Tier)

A lit wall you can see from across the hall. Configuration F double-stacks Lumiere pop-up frames to make a wall 20 ft wide and nearly 15 ft tall, lit from the frame edges by Lumiere Dual Edge LED light kits. It is built for island exhibits and large spaces where the back wall is the landmark people navigate by. Graphics are printed on both sides, so the wall works from the aisle and from inside the booth.

Check the height first. At 177.5 in. this is far above the 8 ft limit for inline booths and above what many shows allow even in islands without approval. It is in your exhibitor manual; send us the show and we will check before you commit. If the show needs a lower or different layout, we can quote a custom configuration.

Specifications

• Display size: 236.2 in. W x 177.5 in. H x 45.05 in. D

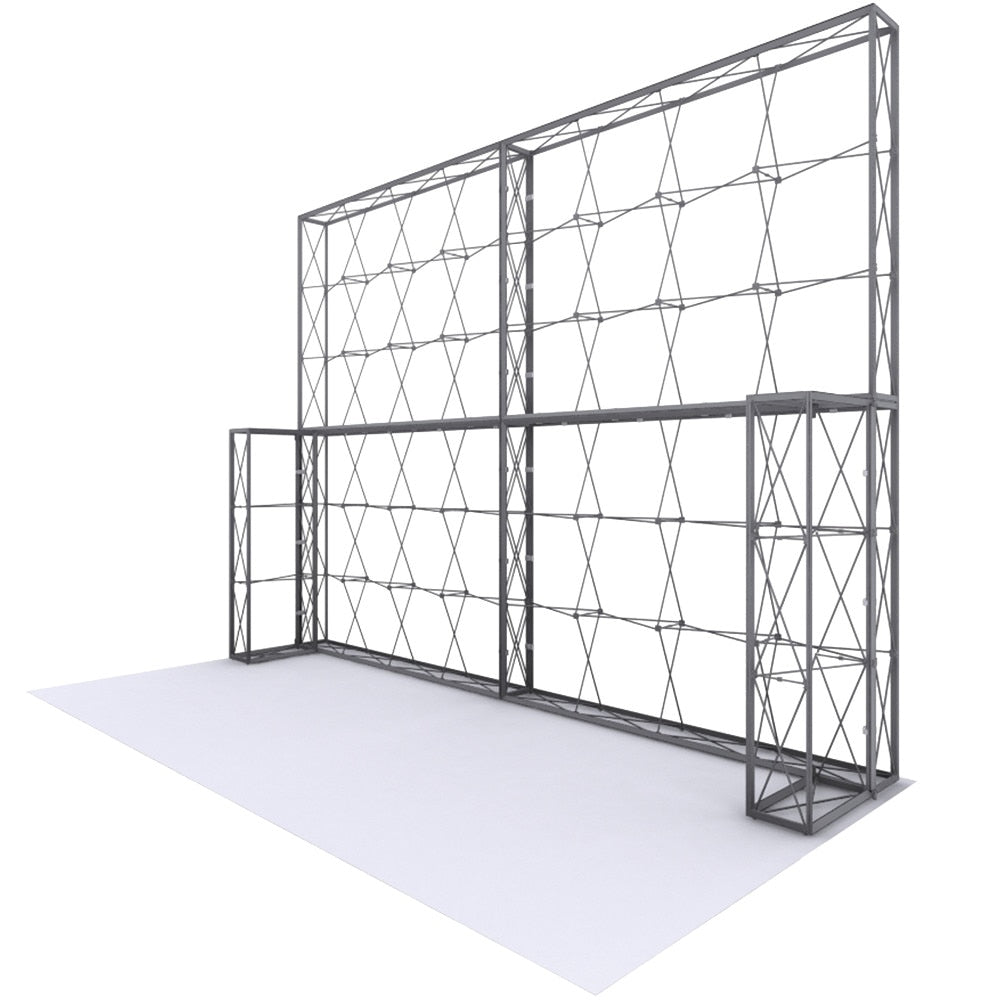

• Frames: (4) 10 x 7.5 ft and (2) 2.5 x 7.5 ft Lumiere aluminum pop-up frames with channel bars
• Graphics: double-sided, dye-sublimated fabric with SEG (silicone edge) finishing: (8) 10 x 7.5 ft and (4) 2.5 x 7.5 ft front panels, (6) end cap panels, plus (2) unprinted top blockout panels
• Lighting: Lumiere Dual Edge LED light kits, (4) 4x3 and (1) 3x3, included
• Power: requires 6 outlets
• Production: confirmed on your order after artwork approval, plus transit

What is in the box

• (6) pop-up frames with channel bars and travel bags
• (28) straight connectors and (6) L connectors
• (12) front graphic panels, (6) end cap panels and (2) top blockout panels
• (5) Dual Edge light kits with travel bags

Setup. Tool-free, but a two-tier wall needs at least two people and two ladders or a scissor lift, and at many halls union labor. For Northeast Ohio shows we deliver, install and store it; elsewhere we arrange installation where the hall requires it.

See complete Lumiere booth systems, or call 330.968.0678 and we will plan it with you.
