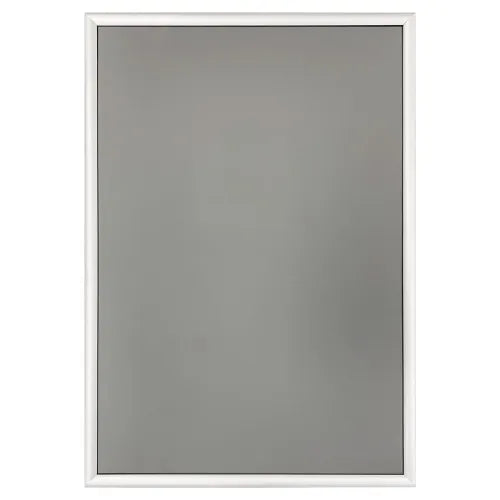

Wall Mount Snap Frame Non-Backlit

An aluminum poster frame that mounts to a wall and opens on all four sides, so the graphic inside changes in about a minute without taking the frame down. Two sizes: 18 x 24 in. and 24 x 36 in. This is the unlit version — if you want the face lit from behind, that is the backlit snap frame.

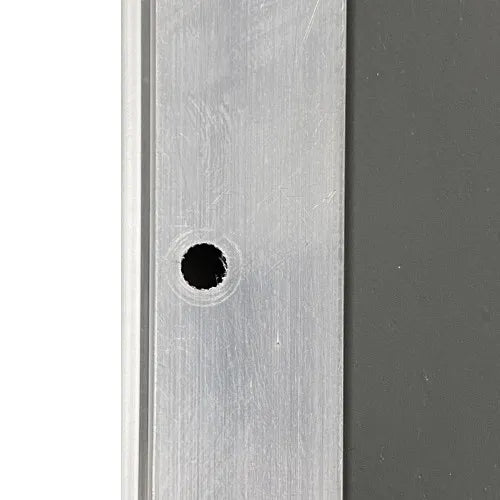

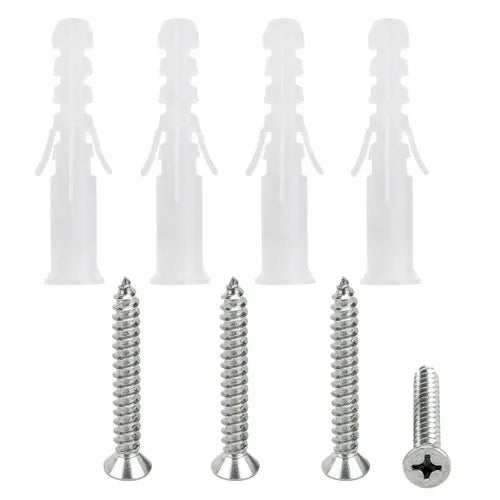

The frame is anodized silver aluminum with 25 mm snap rails, 3/8 in. deep, so it sits close to the wall. It mounts horizontally or vertically and the mounting hardware is in the box.

Changing the graphic

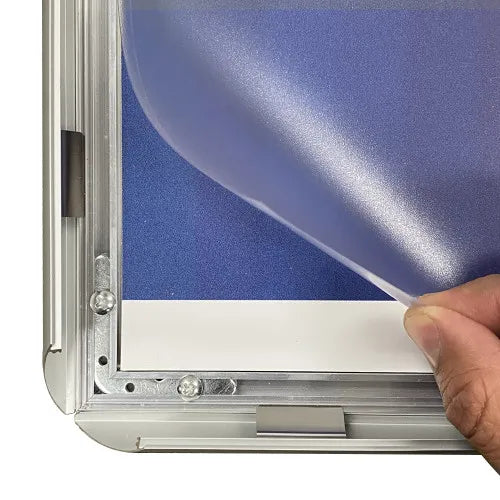

Snap all four rails open, lift out the clear PVC protection film, drop in the new print, lay the film back over it and snap the rails closed. Nothing is glued and nothing is trimmed on site. The frame accepts printed material up to 0.5 mm thick, so a graphic ordered now and a replacement ordered next season go into the same frame.

Specifications — 18 x 24 in.

• Frame size: 19 in. W x 25 in. H x 3/8 in. D
• Printed graphic: 18 in. W x 24 in. H
• Shipping weight: 2 lbs (graphic package or frame only), 1 lb (graphic only)
• Shipping carton: 25 in. L x 21 in. W x 2 in. H; a graphic ordered on its own ships in a 24 in. tube

Specifications — 24 x 36 in.

• Frame size: 25 in. W x 37 in. H x 3/8 in. D
• Printed graphic: 24 in. W x 36 in. H
• Shipping weight: 2 lbs (graphic package or frame only), 1 lb (graphic only)
• Shipping carton: 37 in. L x 25 in. W x 2 in. H; a graphic ordered on its own ships in a 24 in. tube

Both sizes

• Frame: anodized silver aluminum, 25 mm snap rails
• Graphic material: super flat vinyl, UV printed
• Production: 2 business days for up to 10 sets after artwork approval
• Warranty: one year on the hardware, one year on the graphic

What each option includes

• Graphic package — the aluminum snap frame, the PVC protection film, mounting hardware, and one single-sided vinyl graphic printed to your artwork.
• Frame only — the same frame, protection film and mounting hardware, with no graphic. Order this if you are printing elsewhere or reusing a graphic you already have.
• Graphic only — one printed vinyl panel for a frame you already own.

Shipping

One carton per frame at 2 lbs, so it travels as a parcel and the rate calculates at checkout. A graphic ordered on its own ships rolled at 1 lb. If you are ordering a set, ask us to quote the shipment together rather than letting the cart rate each frame.

Artwork

Build artwork at the printed size, 18 x 24 in. or 24 x 36 in., with no bleed — the print is cut to size and held by the rails rather than wrapped. Send a print-ready file, or send your logo and brand colors and we will lay it out and send a proof.

Where these get used

Hallway directories and policy notices in a school or clinic, menu and price panels in a lobby, rotating promotion posters in a storefront window. The rails are the reason to buy one rather than a fixed frame: whoever changes the poster does not need tools, a ladder trip excepted.

Buying several?

Tell us how many walls, which sizes and whether the graphics change on a schedule, and we will quote the frames, the first set of prints and the install as one number. DG Creativ is in Stow, Ohio. Call 330.968.0678, email sales@dgcreativ.com, or request a quote.
