SEGO 15' x 10' Backlit Modular Lightbox Display | Configuration G

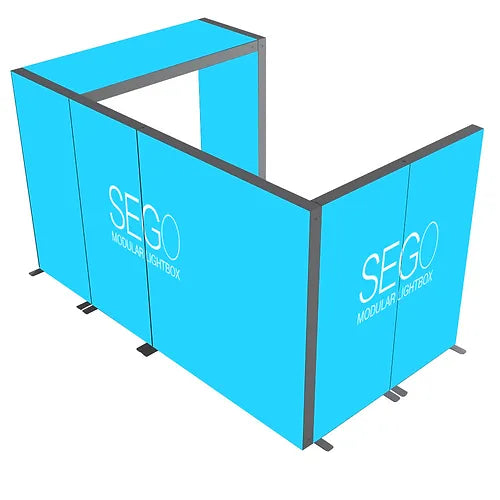

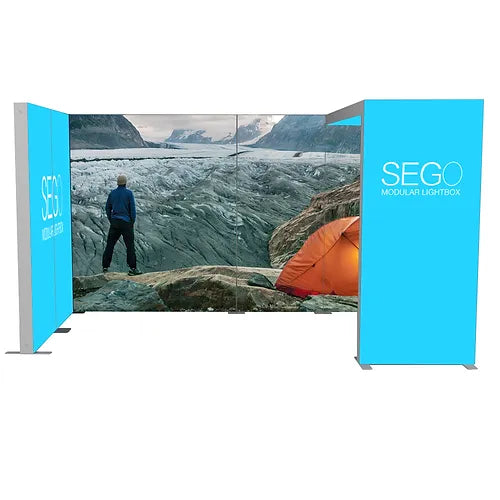

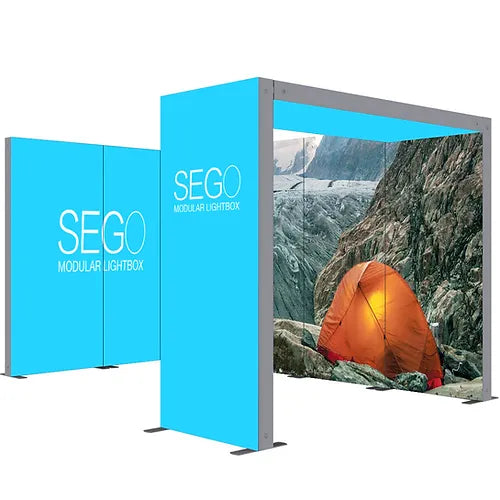

A double-sided backlit lightbox wall, 157.5 inches wide and 88.25 inches high, with 104.5 inches of depth — which makes it a three-sided lit structure rather than a flat back wall. The LED modules are built into the aluminum frame channels, and the frame sections pass power between each other through magnetic contacts in the joints, so no cords run between panels. Backlit stretch fabric with a silicone bead sewn around the edge pushes into the channel on both faces. Two people assemble it in 15 to 20 minutes without tools. Ships in eight boxes, 266 lbs in total. Shipping on this item is quoted at checkout.

Configuration G can be run as the full 15-foot wall or split into smaller lit sections for other booth sizes. If you want a different layout from the same panels, email sales@dgcreativ.com and we will quote the configuration rather than guess at it here.

Key Features

• Double-sided LED backlighting: lighting modules are pre-installed in the frame channels and light the front and back graphics from inside.

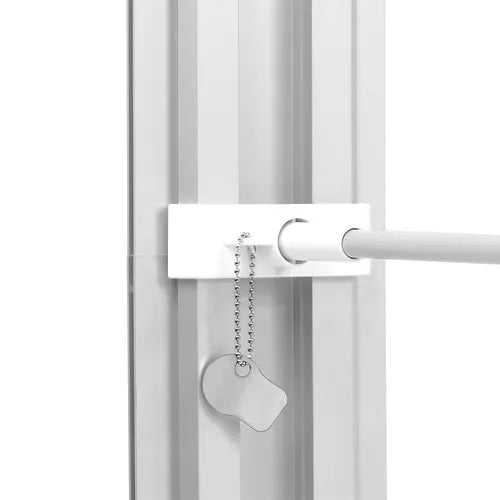

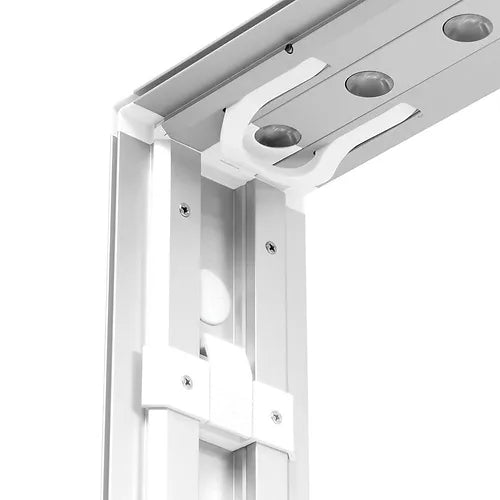

• Tool-free frame: aluminum extrusions lock together with magnetic pins and internal push-button locks. No screws, no loose wiring between panels.

• Silicone edge graphics: backlit stretch fabric with a sewn-in silicone bead that tucks into the frame channel, so the graphic meets the frame without a visible border.

• Modular: the panels can be reconfigured into smaller lit walls or towers. Alternative layouts are quoted before production.

Includes:

• SEG Dye Sub Backlit Fabric Graphics
• 1 SEGO-200X225X12
• 6 SEGO-100X225X12
• 2 SEGO-ILCON
• 4 SEGO-BC
• 6 SEGO-SCON
• 4 SEGO-5MWIRE

Features:

• Graphic Dimensions: 39.75"w x 88.625"H ; 78.125"W x 88.625"H
• Display Dimensions: 157.5"W x 88.25"H x 104.5"D
• Shipping Dimensions: 54.5"W x 15.5"H x 6.75"D (x8 boxes)
• Shipping Weight: 32 lbs (frame & graphic) (6 boxes) ; 37 lbs (frame & graphic) (2 boxes)

Frequently Asked Questions

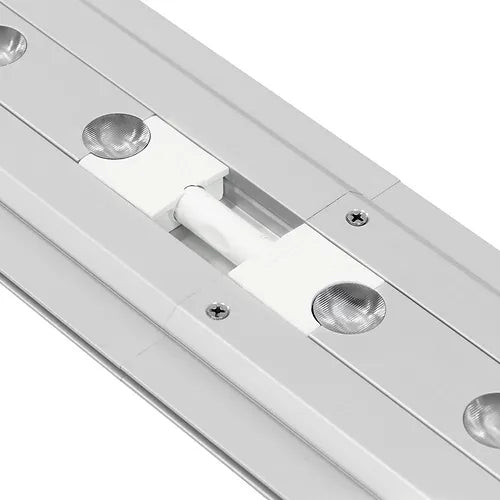

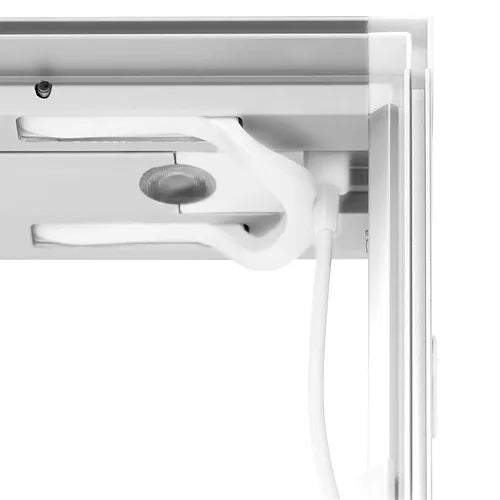

How are the LEDs powered inside the modular frames? The LED arrays sit in the aluminum frame channels. As the frame pieces go together, magnetic electrical contacts in the joints carry power through the wall from a single low-voltage supply line, so there is no cabling to run between panels.

Can I order single-sided graphics instead of double-sided? This package comes with double-sided backlit graphics. If the display will stand flat against a solid venue wall, a white blockout backer can be installed on the rear face instead of a printed graphic.

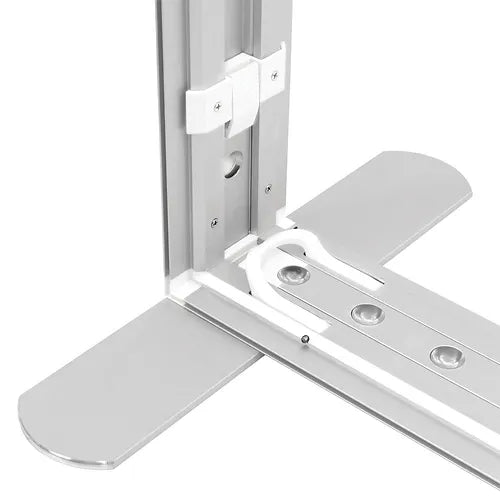

Can two people assemble a 15-foot lightbox wall? Yes. With the push-pin magnetic frame system and slip-fit feet, two people put the complete 15' x 10' wall up in about 15 to 20 minutes without tools.
