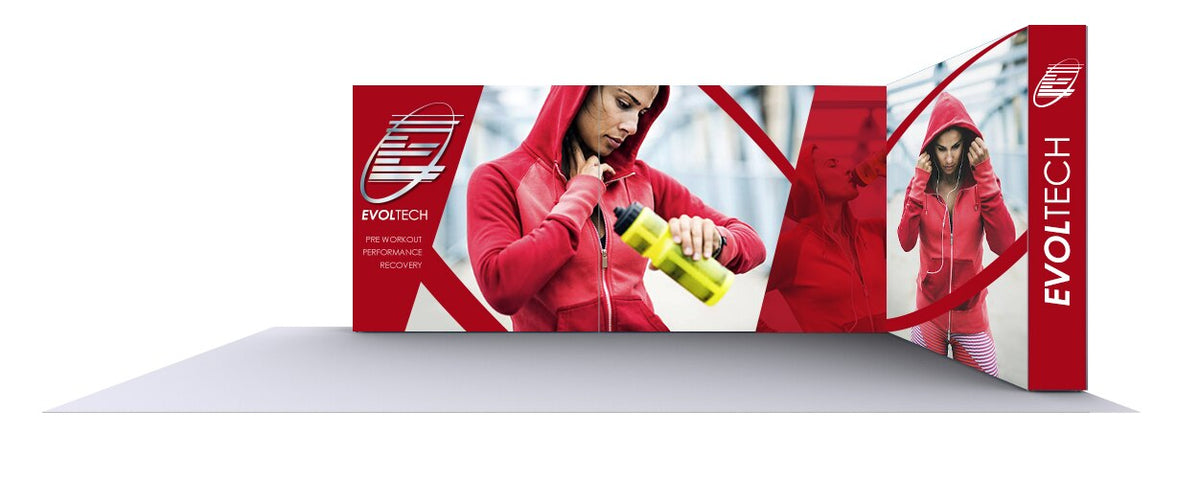

17 ft L-Shape Lumiere Light Wall® Configuration G

A long back wall that turns the corner. Configuration G joins three Lumiere frames into an L: about 17 ft along the back and an 8.6 ft return down one side. In a 10x20 corner booth, that puts your brand on the back wall and on the aisle-facing side at once.

At 89 in. tall it sits under the 8 ft back-wall limit most shows set for inline and corner booths. Graphics are printed front and back, so the wall reads from either side.

Backlit or no lights

• Backlit — (10) LED ladder lights inside the frames, UV backlit fabric. Ships in 6 boxes, 168 lbs.
• No lights — printed stretch fabric, no LEDs. Ships in 3 boxes, 120 lbs. Can be front-lit with clip-on LED lights.

Specifications

• Display size: 207 in. W x 89 in. H x 103 in. D

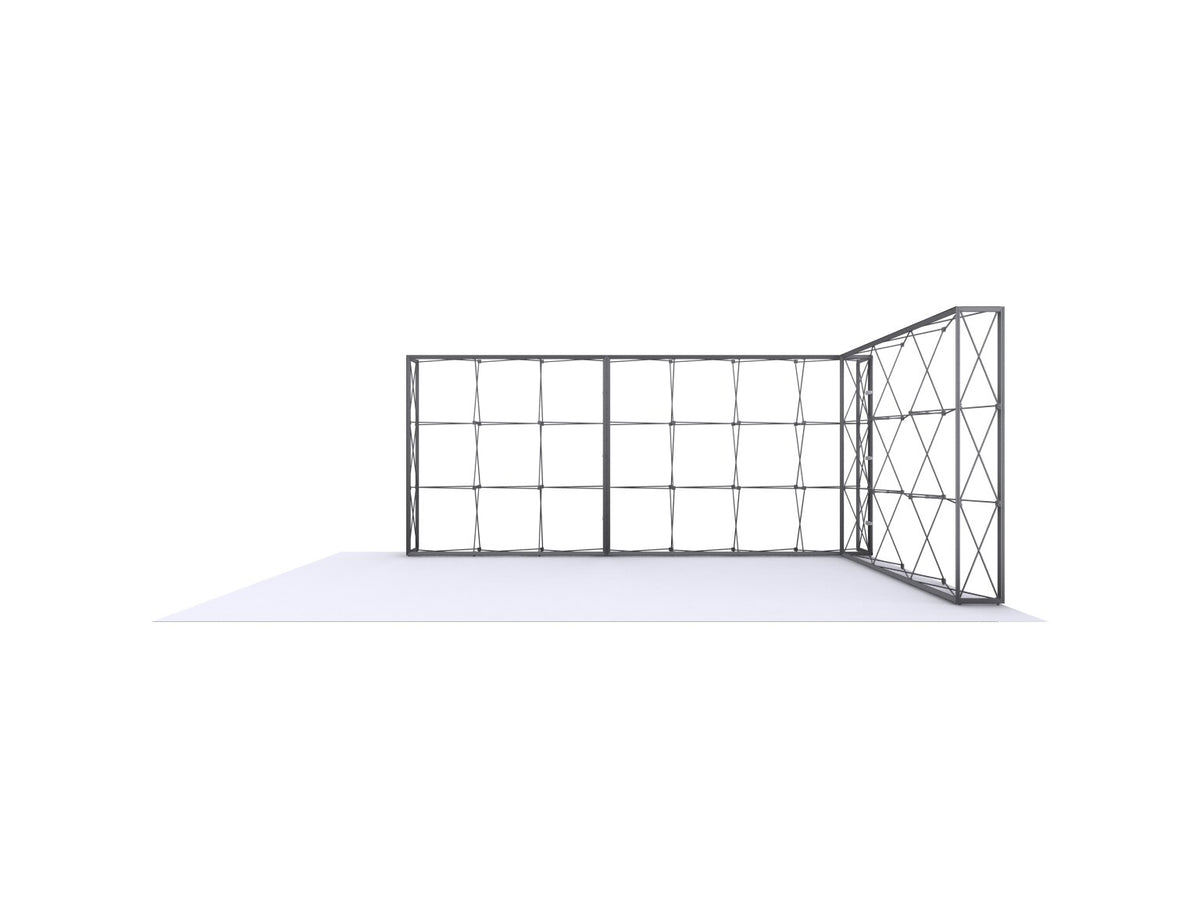

• Frames: (3) Lumiere pop-up frames, 10 x 7.5 ft and 7.5 x 7.5 ft
• Graphics: dye-sublimated fabric with silicone edge, front and back, plus end caps

What is in the box

• (3) pop-up frames with channel bars, channel bar bags and carry bags
• (4) main graphics (2 front, 2 back), (2) side graphics (1 front, 1 back), (3) end cap graphics
• (6) straight connectors and (3) L connectors
• Backlit version adds (10) LED ladder lights, (8) transformers, power cords and light brackets

Setup. Tool-free, but at this size plan on two people. For Northeast Ohio shows we can deliver it, set it up with you and store it between shows.

Check your show rules for corner booths; your exhibitor manual is the binding document. See complete Lumiere booth systems, or call 330.968.0678.
