One Choice® 3' Backlit LED Light Box | Double-Sided Fabric Display

Product overview

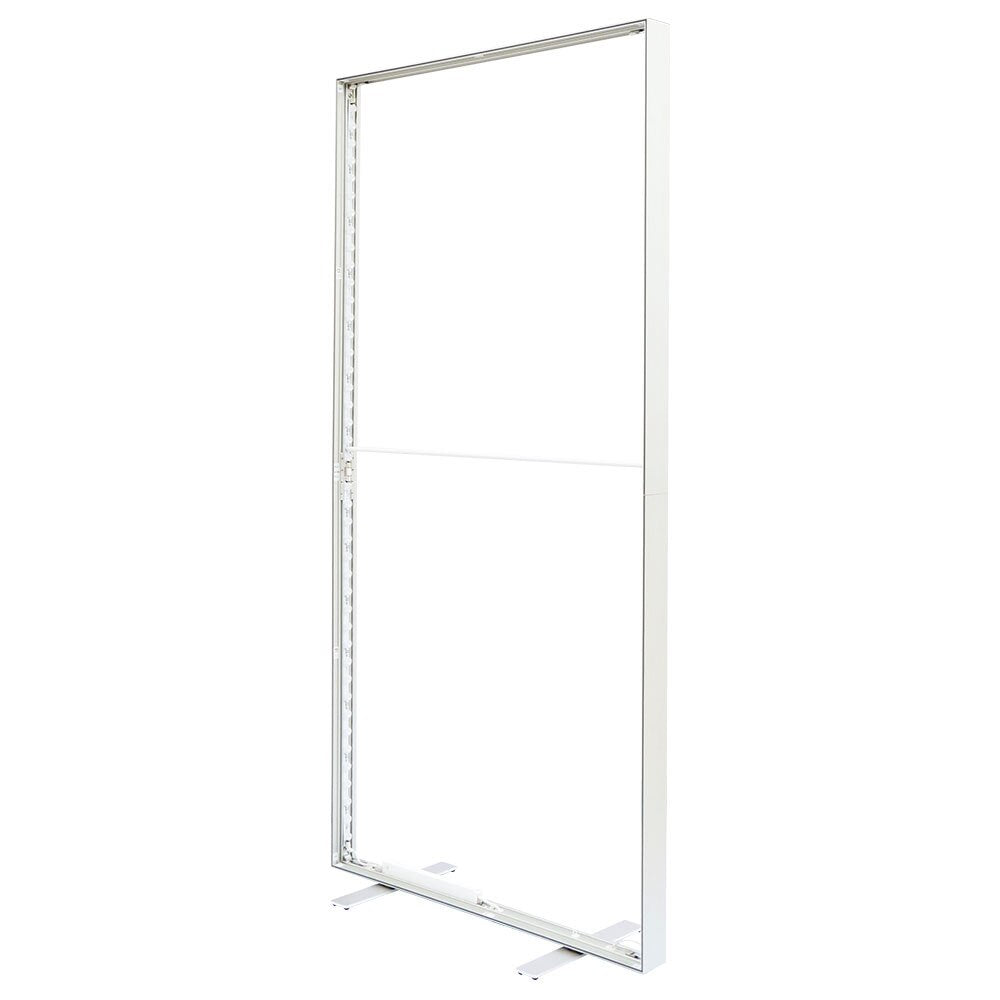

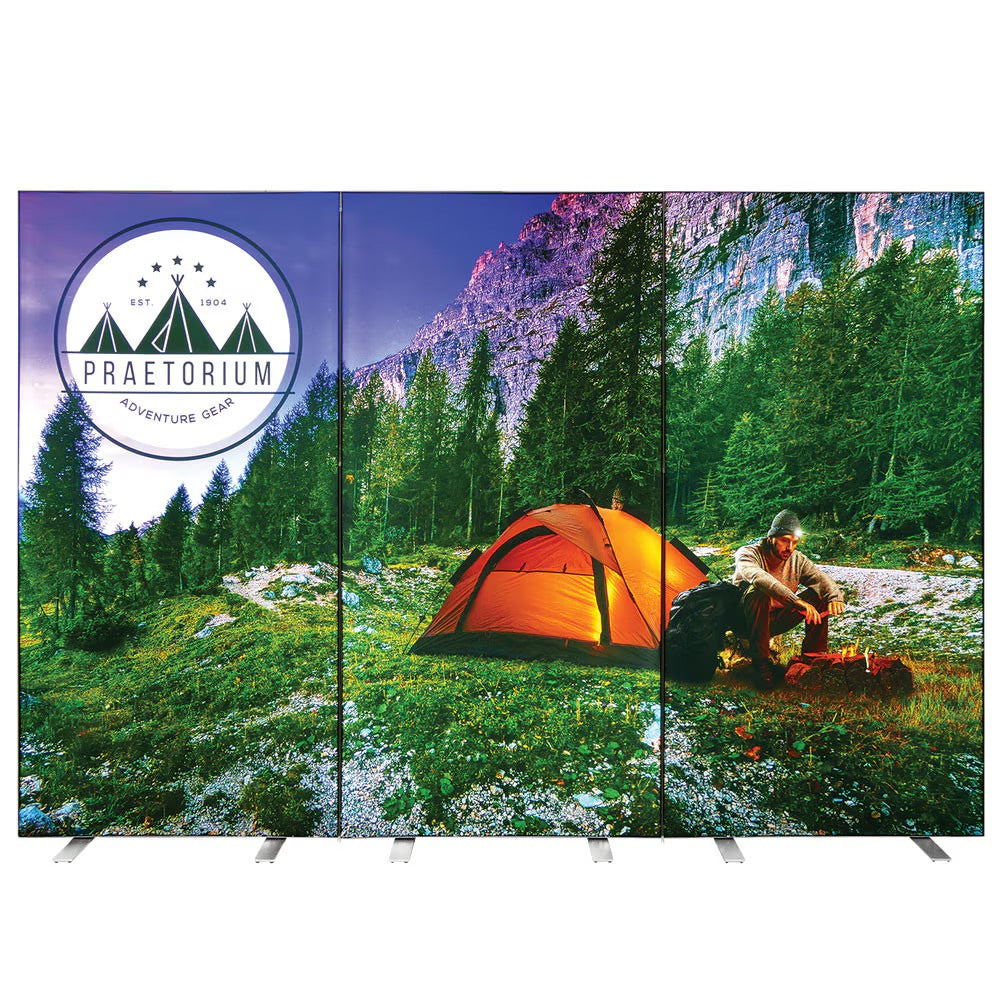

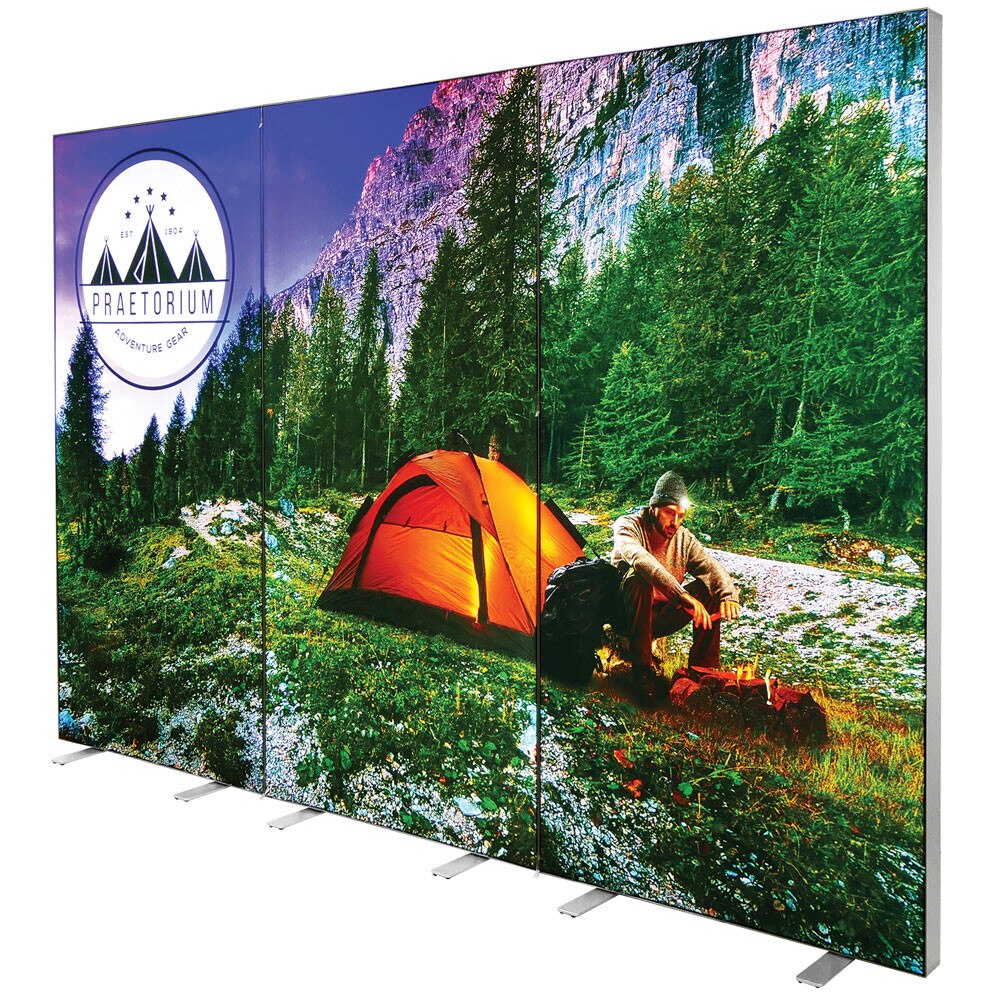

Three double-sided light boxes that stand side by side to make a lit wall 118 1/8 in. wide and 79 1/8 in. tall. Each box is a 39 in. panel on an 80 mm aluminum frame with LED strips pre-installed inside the frame channels, so both faces of each box light at once.

The 3 in the name is the box count, not a dimension. This listing is the three-box set with all six graphics, not a single 3 ft display. Each box has its own transformer and support pole, so the three can stand as one run across the back of a 10 ft booth or be split between a booth and an entrance.

Graphics are dye-sublimated SEG fabric. A silicone bead sewn around the edge of each panel presses into the groove in the frame, which takes a few minutes per face and no tools. Swap in a new graphic for a new show and the hardware stays.

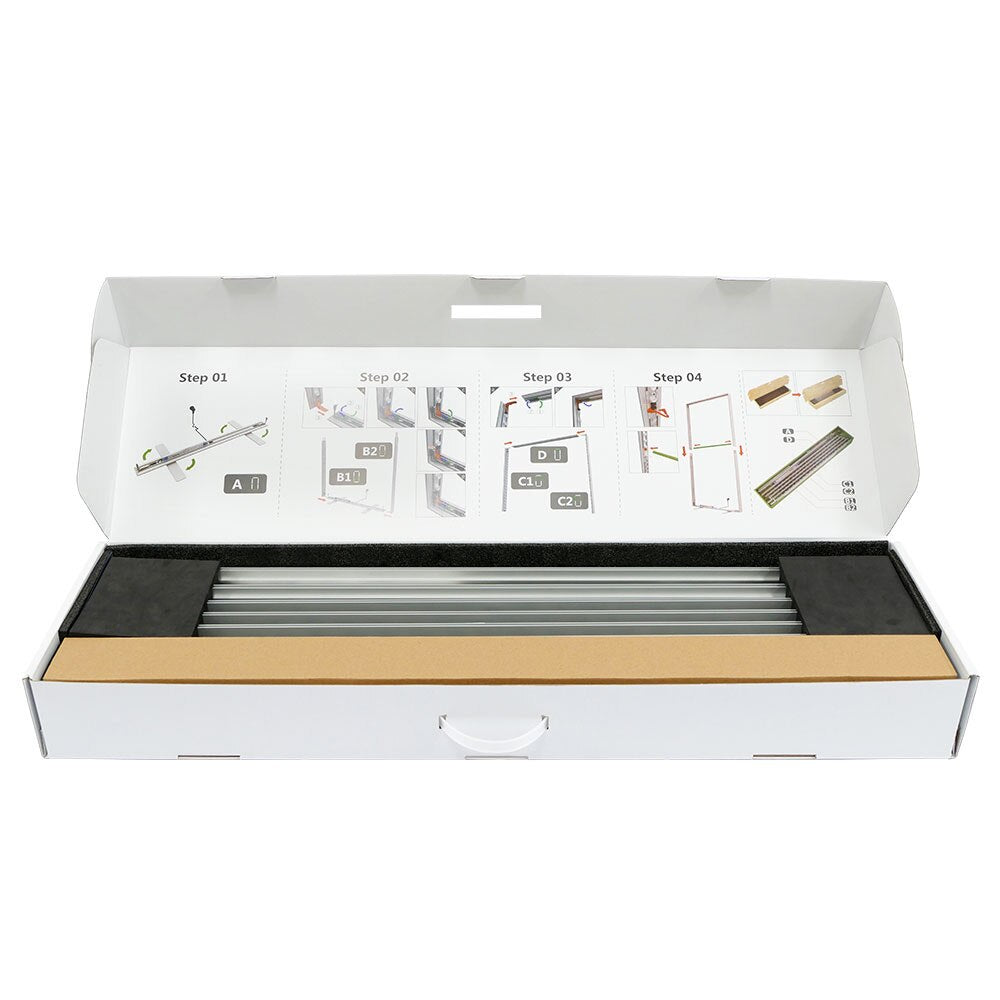

What is in the set

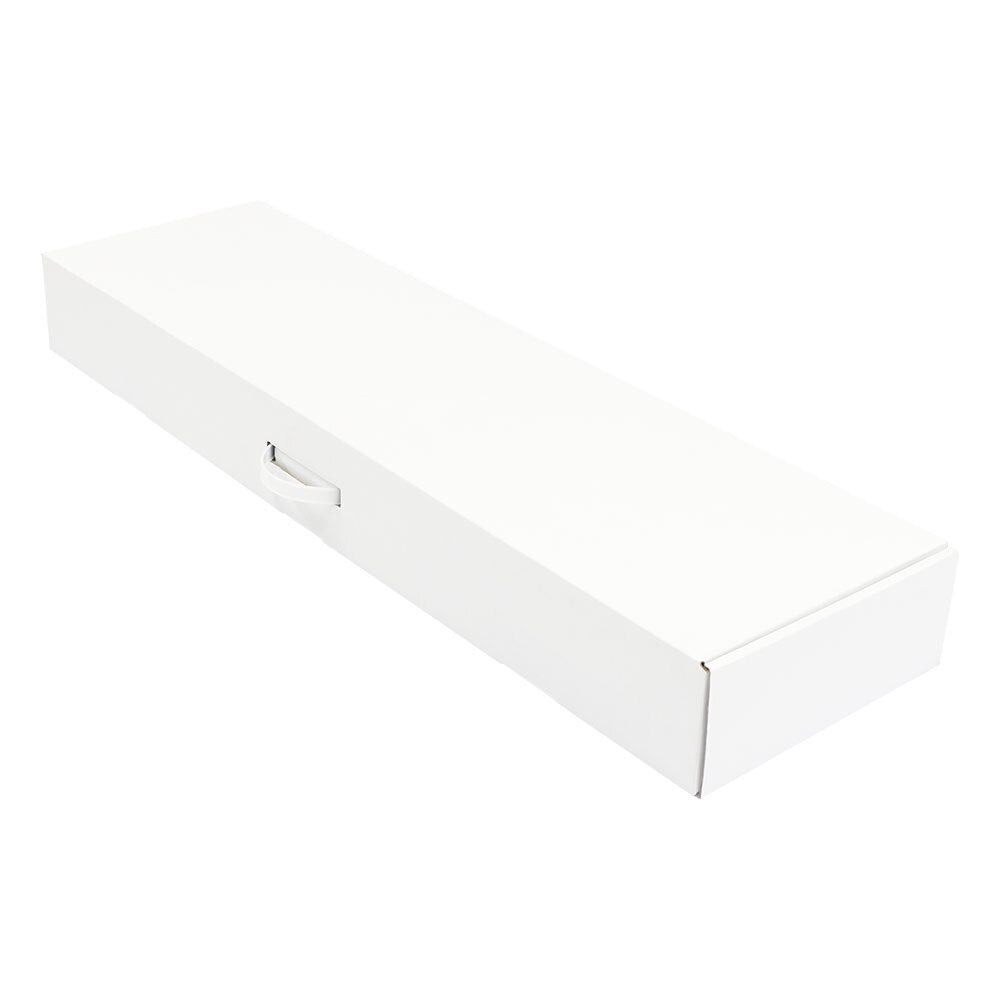

• (3) carry cases
• (3) bottom frame pieces, 80 mm profile
• (12) side frame pieces, 80 mm profile
• (3) top frame pieces, 80 mm profile
• (6) single-sided graphics
• (6) LED wire connectors
• (3) transformer power cords
• (3) support poles
• (18) connection clips

Specifications

• Assembled size: 118 1/8 in. W x 79 1/8 in. H x 15 in. D
• Graphic template: 39 in. W x 79 in. H, six graphics
• Frame: 80 mm aluminum extrusion, tool-free assembly
• Graphics: dye-sublimated backlit stretch fabric with SEG silicone edge
• Power: one standard 110V outlet per box, low-voltage transformer included
• Shipping cartons: three, each 45 in. L x 6 in. W x 13 in. H
• Shipping weight: about 20 lb per carton

Shipping and setup

Three cartons at about 20 lb each, short enough to travel as checked luggage rather than freight. Free ground shipping. Production time is confirmed on your order after artwork approval.

If your show is in Northeast Ohio, we can take delivery, set the wall up on the floor and break it down after. Email sales@dgcreativ.com and we will quote the labor with the display.

Questions buyers ask

Can one box run single-sided? Yes. Each box takes two graphics. Replace one with a plain blockout backer if that box sits flat against a solid wall.

Do the three boxes have to stand together? No. They are independent, each with its own frame, pole and transformer.

What power does it need? Each box plugs into a standard 110V outlet through its own transformer.
